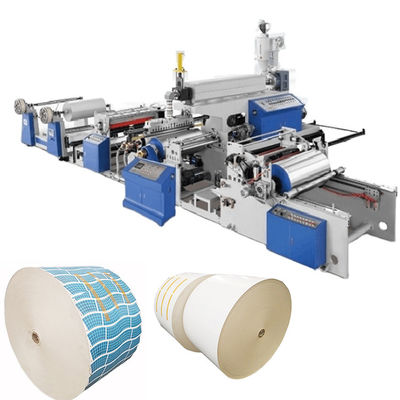

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed

  • High Light

    extrusion laminating machine 210m/Min

    ,

    PE Coating extrusion laminating machine

    ,

    Single side PE Coating Machine

  • Name
    210m/min High Speed Automatic Single Side Pe Coating Extrusion Laminating Machine For Paper Bowl Box
  • Speed
    210M /MIN
  • Lamination Thickness
    0.01-0.10 MM
  • Diameter Of Main Unwinding
    1300 MM
  • Finished Film Width
    800-1300 MM
  • Screw Diameter
    105 MM
  • Adopt Material
    PE Paper, Non Woven , BOPP , Aluminum Foil
  • Usable Resin
    LDPE LLDPE PP EVA EAA
  • Machine Control
    PLC,Touch Screen
  • Base Material
    Paper(35~425g/m²)
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PF-1300
  • Minimum Order Quantity
    1 Set
  • Price
    USD 80000-USD 90000 PER SET
  • Packaging Details
    Wooden Case ,210m/min High speed Automatic Single side pe coating extrusion laminating machine for paper bowl box
  • Delivery Time
    60 working days after received the deposit
  • Payment Terms
    T/T, L/C, Western Union, Money Gram, or Credit card.
  • Supply Ability
    35 Sets Per Month

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed

210m/min High speed Automatic Single side pe coating extrusion laminating machine for paper bowl box
Single side pe coating extrusion laminating machine is mainly using LDPE, LLDPE, PP, PLA and other coating-grade laminating resins as raw materials,for producing PE coated Paper Cup Paper, Paper Bowl Paper, Instant.Noddle Bowl Paper etc, the machine speed can reach 210 m/min, and the actual film production line speed is 180 m/min, with automatic tension control as well as automatic correction functions, fast speed and high efficiency.

♦Technical Parameters♦

Screw diameter φ105mm
L/D 33:1
Finished film widts 800-1300mm
Lamination thickness 0.01-0.10mm
Usable resin LDPE, LLDPE, PP, EVA, EAA
Design line speed 210m/min
Max extrusion capacity 330kg/h
Main motor power 55kw
Diameter of main unwinding 1300mm
Diameter of winding 1300mm
Overall size 10000×12000×3200 mm
Power supply 380/3/4/50(Volt/Ph/Line/Hz)
Working Speed 180m/min, based on detail material
Roller Width 1700 mm
Extrusion Material

LDPE PP EVA EMAA, EAA EMA

And Other Lamination Material

Extrusion resin thickness ±5%



Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 0

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 1

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 2

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 3Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 4



♦Features♦



1 Entire machine adopt PLC touch screen,PLC control converter,drive by Motor.



2 Extrusion Laminating Machine use the casting technology, laminate the two layers materials together.


3 This machine is made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,


4 Three layer or multi-layer new materials, which are suitable for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.



♦ Machine Components ♦



1. Single screw extruder (hydraulic screen changer)
2. Screen changer and connector (the connector contains a static mixerfor pressure control)
3. T-type die head (flow channel design of laminating machine, internal plugging die
head)
4. Extruder truck (guide rail pulley in and out, need to be fixed to the ground with
expansion screws)
5. Extruder and die head heating control box (digital temperature control, automatic
temperature control with full low temperature difference)
6. Main feeder (double station, automatic tension and automatic deviation correction)
7. Corona machine
8. Laminating machine (large cooling roller-matte/mirror surface optional, silicone
roller, backrest stick, hydraulic pressing)
9. Discharge and post-processing device (trimming + waste blowing)
10. Winding machine (double-station automatic roll change and automatic chopper cutting,
double-station hydraulic discharge, air pressure control)
11. Electronic control system (PLC touch screen linkage control, closed-loop automatic
tension, extrusion volume automatically rises and falls with line speed)





♦ Company information♦

Zhengzhou Perfect Co., Ltd. specialize in producing paper cup machine, high cup machine, paper bowl machine, paper box machine, dining box machine and other paper packaging equipments. Our company integrates research and development, production, sales and maintenance, constantly introducing new and high technology, focusing on after-sales service.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Auto Single Side PE Coating Extrusion Laminating Machine 210m/Min High Speed 5

♦FAQ♦

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.



Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.



Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
