Electrical Heating Automatic Single Side Extrusion Lamination PE Coating Paper Machine
When you purchase machines, high-quality products, good service and favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so chose us.
We have won the trust and support from customs home and abroad. In order to provide better products and service, our company emphasis on the recruit of the international talents and has abundant technical power. It is well-worth mentioning that we always follow the principle:to serve our customers with a high sense of responsibility.Our workers are all high-motivated and our engineers take care of every detail and adopt strict factory quality standard with the philosophy "God is in the details
Packaging: Export-standard and sea-worthy wooden case.
Quality Guarantee: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy prepensely is not within the limit of Quality Guarantee.
Installation and Debugging: we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 100 USD /day).
♦ Application ♦
This machine is Casting Lamination Compounding Machine,can accept LDPE,PP,EVA,EAA, Wax&based water etc. lamination grade material,Use for film(BOPP,BOPET,CPP,CPE, etc) Paper,Aluminum Foil,Non-woven, etc. as base material for compounding lamination.Widely used in medical packaging,food packaging,office packaging,industrial packaging and other packaging.
♦ Technical Specification ♦
| Screw diameter | φ105mm |
| L/D | 33:1 |
| Finished film width | 800-1600mm |
| Lamination thickness | 0.01-0.10mm |
| Usable resin | LDPE, LLDPE, PP, EVA, EAA |
| Design line speed | 210m/min |
| Max extrusion capacity | 330kg/h |
| Main motor power | 55kw |
| Total power | 165kw |
| Diameter of main unwinding | 1300mm |
| Diameter of winding | 1300mm |
| Weight | 15 ton |
| Overall size | 10000×12000×3200 mm |
| Power supply | 380/3/4/50(Volt/Ph/Line/Hz) |
| Working Speed | Max. 180m/min, based on detail material |
| Roller Width | 1700 mm |
| Extrusion Material |
LDPE (MFR=4～15) PP (MFR=15～25) EVA (VA:5～20%, MFR=3～16) EMAA, EAA (AA: 4～12%, MFR=5～14) EMA (MA: 5～20%, MFR=5～9) And Other Lamination Material |
| Extrusion resin thickness uniformity | ±5% |
| Heating | Electrical Heating |
| Temperature Control | Temperature Controller |

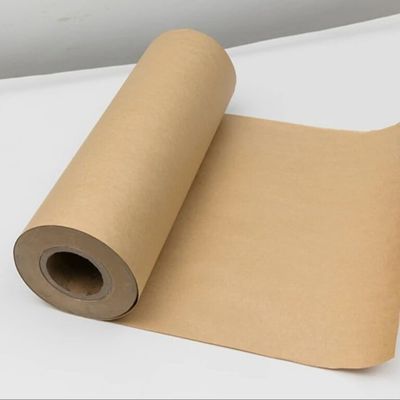

| Base material | Paper(35～425g/m²),Mainly for 40～120g/m² |
| Machine Control | PLC Programmable Controller,Touch Screen Control |
| Drive Motor | Ac vector frequency conversion motor(Siemens) |
| Converter | AC Vector Converter(Inovance) |
| Total Power | Loading Power 165kw(Using Power 85～100kw) |
| Cooling Water Supply | Temp. 16～25℃,Flow Rate 80m³/h,Water Pressure ≧2kg/cm² |
| Air Supply | Air Pressure ≧ 6kg/cm²,Air Consumption 15m³/h |
♦Features♦
1,Entire machine data can set in PLC touch screen,PLC control converter,drive by Motor.
2,Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together.
3,Made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,
4,Three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
Our products are sold all over the world, you can rest assured.
