PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups

PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups

  • High Light

    Single Side PE Coating Machine

    ,

    EVA pe coating machine for paper cups

    ,

    PLC Touch Screen pe lamination machine

  • Name
    Single Side Pe Coating Extrusion Laminating Machine For Paper Cup
  • Speed
    210M PER MIN
  • Lamination Thickness
    0.01-0.10 MM
  • Diameter Of Main Unwinding
    1300 MM
  • Finished Film Width
    800-1300 MM
  • Screw Diameter
    105 MM
  • Adopt Material
    PE Paper, Non Woven , BOPP , Aluminum Foil
  • Usable Resin
    LDPE LLDPE PP EVA EAA
  • Machine Control
    PLC,Touch Screen
  • Base Material
    Paper(35~425g/m²)
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PF-1300
  • Minimum Order Quantity
    1 Set
  • Price
    USD 80000-USD 90000 PER SET
  • Packaging Details
    Wooden Case ,Single side pe coating extrusion laminating machine for paper cup
  • Delivery Time
    60 working days after received the deposit
  • Payment Terms
    T/T, L/C, Western Union, Money Gram, or Credit card.
  • Supply Ability
    30 Sets Per Month

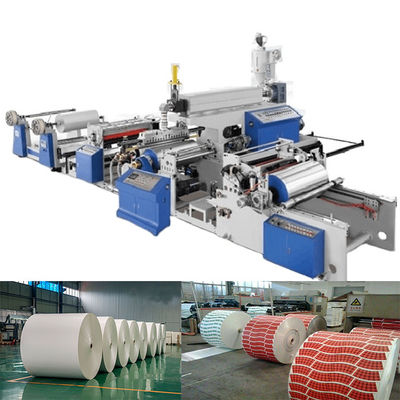

PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups

Single side pe coating extrusion laminating machine for paper cup
Single side pe coating extrusion laminating machine for paper cup is adopts the casting technology, laminate the two layers materials together. made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer, three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.

♦Technical Parameters♦

Screw diameter φ105mm
L/D 33:1
Finished film widts 800-1300mm
Lamination thickness 0.01-0.10mm
Usable resin LDPE, LLDPE, PP, EVA, EAA
Design line speed 210m/min
Max extrusion capacity 330kg/h
Main motor power 55kw
Diameter of main unwinding 1300mm
Diameter of winding 1300mm
Overall size 10000×12000×3200 mm
Power supply 380/3/4/50(Volt/Ph/Line/Hz)
Working Speed 180m/min, based on detail material
Roller Width 1700 mm
Extrusion Material

LDPE PP EVA EMAA, EAA EMA

And Other Lamination Material

Extrusion resin thickness ±5%

PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 0PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 1PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 2

PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 3PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 4

PLC Touch Screen Single Side EVA PE Coating Machine For Paper Cups 5



♦Features♦



1 Entire machine adopt PLC touch screen,PLC control converter,drive by Motor.



2 Extrusion Laminating Machine use the casting technology, laminate the two layers materials together.


3 This machine is made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,


4 Three layer or multi-layer new materials, which are suitable for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.



♦FAQ♦

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.



Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.



Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.



How to contact us?

Thanks for visiting our web, if any interests or questions,please don't hesitate to contact us, we will do our best for you, your kind inquiry will be replied as soon as we can.
