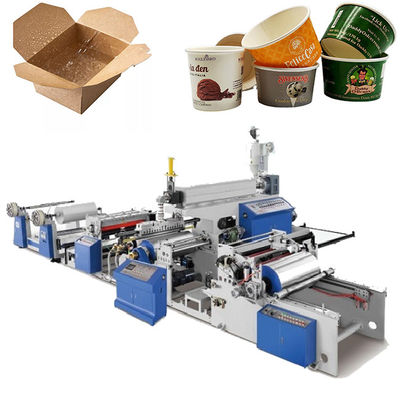

35-425gsm Paper PE Coating Machine Automatic Single Side Extrusion Lamination Machine

35-425gsm Paper PE Coating Machine Automatic Single Side Extrusion Lamination Machine

  • High Light

    425gsm Paper PE Coating Machine

    ,

    35gsm Paper PE Coating Machine

    ,

    Single Side Extrusion Lamination Machine

  • Name
    Automatic Single Side Extrusion Lamination Pe Coating Paper Machine
  • Laminating Speed
    175-180m / Min
  • Design Line Speed
    210m / Min
  • Overall Size
    10000×12000×3200 Mm
  • Finished Film Width
    800-1700mm
  • Hooper Size
    50L
  • Adopt Material
    Paper \ Non Woven \ Aluminum Foil
  • Usable Resin
    LDPE PP EVA Etc.
  • Machine Control
    Programmable Logic Controller And Touch Screen
  • Base Material
    35~425g / M² Paper,Mainly For 40~120g / M²
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PF-1300Automatic Single Side Extrusion Lamination Pe Coating Paper Machine
  • Minimum Order Quantity
    1 Set
  • Price
    USD 82000-USD 92000
  • Packaging Details
    Wooden Case
  • Delivery Time
    60 Work Days
  • Payment Terms
    T/T, L/C, Western Union, Money Gram, or Credit card.
  • Supply Ability
    30 Sets Per Month

35-425gsm Paper PE Coating Machine Automatic Single Side Extrusion Lamination Machine

Automatic Single Side Extrusion Lamination Pe Coating Paper Machine



Automatic Single Side Extrusion Lamination Pe Coating Paper Machine mainly using LDPE, LLDPE, PP, PLA and other coating-grade laminating resins as raw materials,for producing PE coated Paper Cup Paper, Paper Bowl Paper, Instant.Noddle Bowl Paper etc, the machine speed can reach 210 m/min, and the actual film production line speed is 180 m/min, with automatic tension control as well as automatic correction functions, fast speed and high efficiency with minimum wastage than old model.





♦Technical Parameters♦





Screw diameter φ105mm
L/D 33:1
Finished film widts 800-1700mm
Lamination thickness 0.01-0.10mm
Usable resin LDPE, LLDPE, PP, EVA, EAA
Design line speed 210m/min
Max extrusion capacity 330kg/h
Main motor power 55kw
Diameter of main unwinding 1300mm
Diameter of winding 1300mm
Power supply 380/3/4/50(Volt/Ph/Line/Hz)
Working Speed 170-180m/min, based on detail material
Roller Width 1700 mm
Extrusion Material

LDPE PP EVA EMAA, EAA

And Other Lamination Material

Extrusion resin thickness ±5%







♦Feature♦



High speed Lamination Machine uses lamination grade LDPE, LLDPE, PP, EVA, EAA as coating material, mainly designed for paper single side and double side coating, real production speed can reach 180M/Min.



Entire Machine control by PLC, weight more than 10 Tons, to ensure machine stable while running at 180M/Min.



35-425gsm Paper PE Coating Machine Automatic Single Side Extrusion Lamination Machine 0

35-425gsm Paper PE Coating Machine Automatic Single Side Extrusion Lamination Machine 1







♦About Us♦



Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.


With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.


We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



Low price high speed big paper bowl making machine for noodles/salade



♦FAQ♦



Q1: Are you manufacturer or trading company?



A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?



A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?



A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q4 : Do you inspect the finished machines?



A: Sure, we test every machine before packing and provide test video.
