| MOQ: | 1 Set |
| Price: | USD 82000-USD 92000 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 60 Work Days |
| Payment Method: | T/T, L/C, Western Union, Money Gram, or Credit card. |
| Supply Capacity: | 30 Sets Per Month |

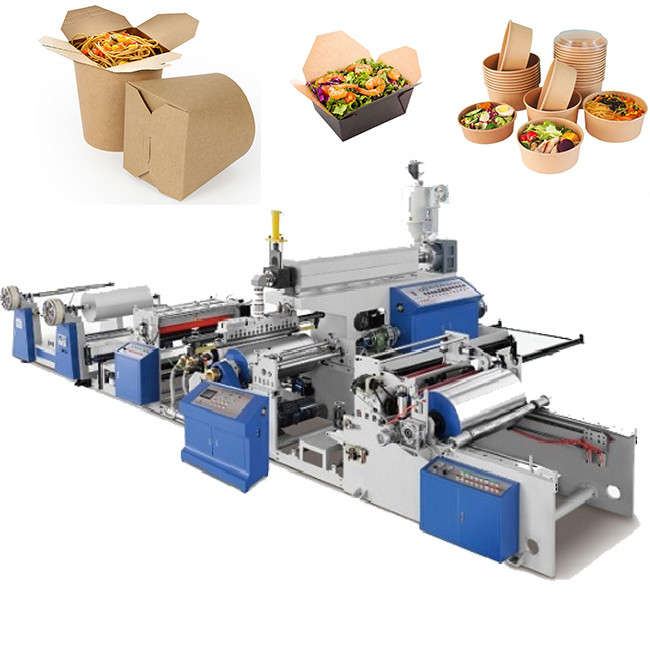

Single Side Extrusion Medical Packaging Kraft Food Packaging Paper Pe Coating Machine
Single Side Extrusion Medical Packaging Kraft Food Packaging Paper Pe Coating Machine is used for producing PE coated Paper Cup Paper, Paper Bowl Paper, Instant.Noddle Bowl Paper etc, could adopt LDPE, LLDPE, PP, PLA and other coating-grade laminating resins as raw materials.
This machine speed actual film production line speed is 180 m/min, could reach 210 m/min, equips with automatic tension control and automatic correction functions, fast speed and high efficiency with minimum wastage.
♦Technical Parameters♦
| Screw diameter | φ105mm |
| L/D | 33:1 |
| Finished film widts | 800-1700mm |
| Lamination thickness | 0.01-0.10mm |
| Usable resin | LDPE, LLDPE, PP, EVA, EAA |
| Design line speed | 210m/min |
| Max extrusion capacity | 330kg/h |
| Main motor power | 55kw |
| Diameter of main unwinding | 1300mm |
| Diameter of winding | 1300mm |
| Power supply | 380/3/4/50(Volt/Ph/Line/Hz) |
| Working Speed | 170-180m/min, based on detail material |
| Roller Width | 1700 mm |
| Extrusion Material |
LDPE PP EVA EMAA, EAA And Other Lamination Material |
| Extrusion resin thickness | ±5% |
♦Feature♦
Single Side Extrusion Medical Packaging Kraft Food Packaging Paper Pe Coating Machine uses lamination grade LDPE, LLDPE, PP, EVA, EAA as coating material, could use both paper single side and double side coating, real production speed can reach 180M/Min.
This machine is control by PLC, weight more than 10 Tons, to ensure machine stable while running at 180M/Min.
♦About Us♦
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
|
|
