Non Woven Paper PE Extrusion Coating Laminating Machine PF1700

Non Woven Paper PE Extrusion Coating Laminating Machine PF1700

  • High Light

    PE Extrusion Coating Laminating Machine


    Extrusion Coating Laminating Machine PF1700


    Non Woven extrusion coating lamination plant

  • Name
    210m / Min Single Side Film Non Woven Paper Pe Extrusion Coating Laminating Machine
  • Laminating Speed
    175-180m / Min
  • Design Line Speed
    210m / Min
  • Overall Size
    10000×12000×3200 Mm
  • Finished Film Width
  • Hooper Size
  • Adopt Material
    Paper \ Non Woven \ Aluminum Foil
  • Usable Resin
    LDPE PP EVA Etc.
  • Machine Control
    Programmable Logic Controller And Touch Screen
  • Base Material
    35~425g / M² Paper,Mainly For 40~120g / M²
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    USD 82000-USD 92000
  • Packaging Details
    Wooden Case
  • Delivery Time
    60 Work Days
  • Payment Terms
    T/T, L/C, Western Union, Money Gram, or Credit card.
  • Supply Ability
    30 Sets Per Month

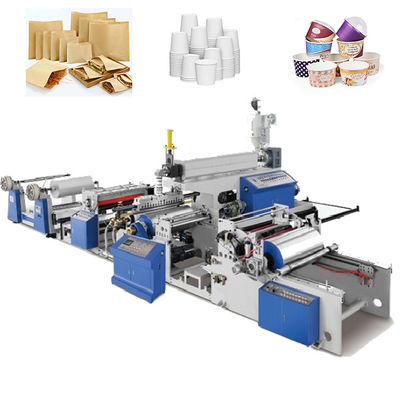

Non Woven Paper PE Extrusion Coating Laminating Machine PF1700

180 M / Min Double Side Extrusion Laminate PE Coating Machine For Paper

210m / Min Single Side Film Non Woven Paper Pe Extrusion Coating Laminating Machine could accept LDPE,PP,EVA,EAA, etc. lamination grade material,Use for film(BOPP,BOPET,CPP,CPE, etc) Paper,Aluminum Foil,Non-woven, etc. as base material for compounding lamination.Widely used in medical packaging,food packaging,office packaging,industrial packaging and other packaging.


♦Technical Parameters♦


Screw diameter φ105mm
L/D 33:1
Finished film widts 800-1700mm
Lamination thickness 0.01-0.10mm
Usable resin LDPE, LLDPE, PP, EVA, EAA
Design line speed 210m/min
Max extrusion capacity 330kg/h
Main motor power 55kw
Diameter of main unwinding 1300mm
Diameter of winding 1300mm
Power supply 380/3/4/50(Volt/Ph/Line/Hz)
Working Speed 170-180m/min, based on detail material
Roller Width 1700 mm
Extrusion Material


And Other Lamination Material

Extrusion resin thickness ±5%



About SJ105/33 Single Screw Extruder


Extrusion Capacity For LDPE(MI=4~7,Melting Temperature 330ºC),Max Extrusion Capacity 330kg/h,Precise Capacity depend on the material and technology process.
Screw and Barrel

1)Dia:φ105mm,L/D 33:1

2)Screw & Barrel Material:38CrMoAlA

3)Antiseptic Treatment:Nitride hard chromium plating processing and surface protection:

4)Nitride Depth:0.4-0.7mm,brittleness≦Lv2

5)Heater:Air Cooling Cast Iron Heater

6)Heating Power:60kw

7)Heating Control:6 Zone



Option: Add Shaftless Unwinder with Auto Splicer
