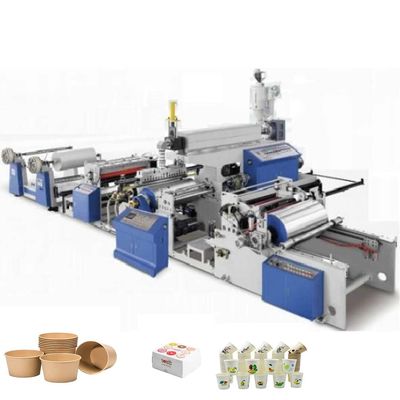

165kw Extrusion Lamination Paper PE Coating Machine 800-1600mm Width

165kw Extrusion Lamination Paper PE Coating Machine 800-1600mm Width

  • High Light

    Paper PE Coating Machine 800mm


    Paper PE Coating Machine 1600mm


    165kw extrusion coating machine

  • Name
    165kw Automatic Single Side Extrusion Lamination PE Coating Paper Machine
  • Finished Film Width
  • Lamination Thickness
  • Usable Resin
  • Design Line Speed
  • Max Extrusion Capacity
  • Place of Origin
    Henan, China
  • Brand Name
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    USD$ 85,000/ set
  • Packaging Details
    Export-standard and sea-worthy wooden case.
  • Delivery Time
    Within 60 days after deposit received
  • Payment Terms
    30% T/T as deposit in advance, the balance by T/T after production
  • Supply Ability
    15 Set/Sets per Month

165kw Extrusion Lamination Paper PE Coating Machine 800-1600mm Width


This machine is Casting Lamination Compounding Machine,can accept LDPE,PP,EVA,EAA, Wax&based water etc. lamination grade material,Use for film(BOPP,BOPET,CPP,CPE, etc) Paper,Aluminum Foil,Non-woven, etc. as base material for compounding lamination.Widely used in medical packaging,food packaging,office packaging,industrial packaging and other packaging.


Technical Specification

Screw diameter φ105mm
L/D 33:1
Finished film width 800-1600mm
Lamination thickness 0.01-0.10mm
Usable resin LDPE, LLDPE, PP, EVA, EAA
Design line speed 210m/min
Max extrusion capacity 330kg/h
Main motor power 55kw
Total power 165kw
Diameter of main unwinding 1300mm
Diameter of winding 1300mm
Weight 15 ton
Overall size 10000×12000×3200 mm
Power supply 380/3/4/50(Volt/Ph/Line/Hz)
Working Speed Max. 180m/min, based on detail material
Roller Width 1700 mm
Extrusion Material

LDPE (MFR=4~15)

PP (MFR=15~25)

EVA (VA:5~20%, MFR=3~16)

EMAA, EAA (AA: 4~12%, MFR=5~14)

EMA (MA: 5~20%, MFR=5~9)

And Other Lamination Material

Extrusion resin thickness uniformity ±5%
Heating Electrical Heating
Temperature Control Temperature Controller
Base material Paper(35~425g/m²),Mainly for 40~120g/m²
Machine Control PLC Programmable Controller,Touch Screen Control
Drive Motor Ac vector frequency conversion motor(Siemens)
Converter AC Vector Converter(Inovance)
Total Power Loading Power 165kw(Using Power 85~100kw)
Cooling Water Supply Temp. 16~25℃,Flow Rate 80m³/h,Water Pressure ≧2kg/cm²
Air Supply Air Pressure ≧ 6kg/cm²,Air Consumption 15m³/h

Packaging & Shipping

Package detail Wooden case/1300mm automatic single side extrusion lamination pe coating paper machine
Package size 10100×12100×3400 mm
Gross weight 16T




1,Entire machine data can set in PLC touch screen,PLC control converter,drive by Motor.
2,Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together.
3,Made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,
4,Three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.

1300mm automatic single side extrusion lamination pe coating paper machine is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like PP, LDPE, LLDPE, PP, EVA, EAA. With customized solutions including different layers, sizes and die widths.



Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.

Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.

Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.

Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
