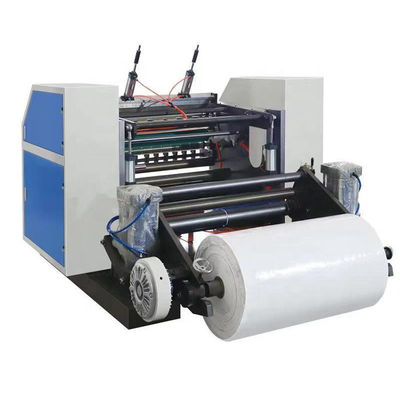

Non Woven Film Slitter Rewinding Machine High Speed Paper Roll Slitting Machine
-
High Light
Non Woven Film Slitter Rewinding Machine
,Slitter Rewinding Machine High Speed
,High Speed Paper Roll Slitting Machine
-
Machine NameNon Woven Film Slitter Rewinding Machine High Speed Paper Roll Slitting Machine
-
Material Paper60-600 Gsm
-
Unwind Width600-1600 Mm
-
Unwind Diameter1400 Mm
-
Rewind Diameter1400 Mm
-
Minimum Slitting Width35 Mm
-
Working Speed0-200 M/min
-
Speed RegulationBy Inverter
-
Place of OriginChina
-
Brand NameFect
-
CertificationCE
-
Model NumberPF-200FQ
-
Minimum Order Quantity1 set
-
PriceFOB US $14000- 15000/ Set
-
Packaging DetailsWooden case / Automatic Jumbo Paper Rewinding Rotary Non Woven Film Paper Slitting Machines
-
Delivery Timewithin 35 working days after payment confirmed
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability90 sets per month
Non Woven Film Slitter Rewinding Machine High Speed Paper Roll Slitting Machine
paper slitting machines
PF-200FQ large paper rewinder is suitable for kraft paper; tea board; tube paper; art paper, etc. Multi-blade cutting. Minimum cutting length is 35 mm. The winding section is equipped with an inflatable shaft; the finished rolls are easier to pick. Curved rolls on the winding side for automatic separation of finished rolls.
High Speed 200 M / Min Rewinding Roll Non Woven Film Paper Slitting Machines
1. Double blade (upper blade and lower blade) slitting. Cut edges are smoother and neater.
2. Adopt shaftless loading device, which can bear 2000kg weight.
3. Pneumatic loading and unloading system, the loading of material rolls and the unloading of finished rolls are automatic.
4. The width and diameter of the paper roll can be customized.
Technical parameters of paper slitting machine
| Main Parameters | Control System | ||
| Material paper | 60-600gsm | Main motor | 11kw Wannan |
| Unwind width | 600-1600mm | Electric components | CHNT |
| Unwind diameter | 1400mm | Pneumatic components | Jing wei |
| Rewind diameter | 1400mm | Bearing | Ha er bin |
| Minimum slitting width | 35mm | Main Configuration | |
| Working speed | 0-200m/min | Jumbo paper loading device | 1 pair (76mmID) |
| Speed regulation | by Inverter | Hydraulic lifting device | 1 set |
| Material paper loading device | Shaftless | Discharging air cylinder | 2 piece |
| Loading | Automatically by Hydraulic | Braking device | 2 pieces (air brake) |
| Unloading | Automatically by pneumatic | Blades | 20 sets (top&bottom) |
| Rewinding device | Air expanding shaft | Operating box | 1 set |
| Power supply | 380V 50Hz 3Phase | Tool | 1 set |
| Measurement & Weight | Curved roller | Have | |
|
Measurement
|
L3320*W1460*H1250mm (unwind side) | ||
| L2350*W1690*H1190mm (rewind side) | |||
|
Weight
|
3300kgs | ||
FAQ of paper cup die cutting machine
Q1: Are you a manufacturer or a trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up from the airport
Q2 :: Do you have a suitable certificate?
A: Yes, so far we have CE, ISO, etc. We can also issue CO, Form E, etc. if required.
Q3: Do you check finished machines?
A: Yes, we have quality control department, they check each machine before packing and provide test video to make sure there is no problem with the machine.
Q4: What payment terms are accepted?
A: TT (Wire Transfer), Western Union, MoneyGram, LC, etc.
Q5: When will the order be shipped?
A Depending on the model and quantity of the machine, some warehouse machines may be shipped within 3 working days after payment, other customized machines will start production after receiving the deposit, please contact our team for details.
Q6: How about the warranty and after-sales service?
A: Our machines have a two-year warranty and lifetime technical support. Help is always remote by phone or email, then we can provide a suitable solution within 8 hours of analyzing and estimating the problem. Provides remote training and on-site service.
Our products are sold all over the world, you can rest assured.
