paper slitting machines

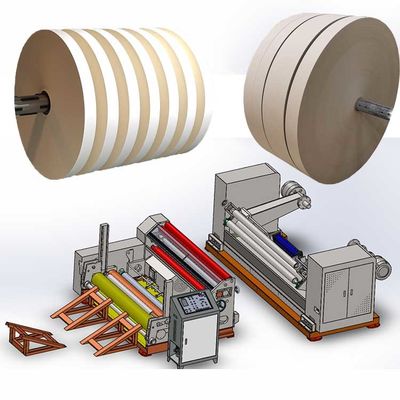

PF-200FQ Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paper board; Bobbin paper; Art paper etc.
Multi Blades Slitting. minimum slitting length is 35mm. Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier. Rewinding side has curved roller and finished rolls can be seperated automatically.
High Speed 200 M/Min 1600 MM Cutting Rewinding Paper Slitting Machines
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
Technical parameters of paper slitting machine
Main Parameters | Control System | ||
Material paper | 60-600gsm | Main motor | 11kw Wannan |
Unwind width | 600-1600mm | Electric components | CHNT |
Unwind diameter | 1400mm | Pneumatic components | Jing wei |
Rewind diameter | 1400mm | Bearing | Ha er bin |
Minimum slitting width | 35mm | Main Configuration | |
Working speed | 0-200m/min | Jumbo paper loading device | 1 pair (76mmID) |
Speed regulation | by Inverter | Hydraulic lifting device | 1 set |
Material paper loading device | Shaftless | Discharging air cylinder | 2 piece |
Loading | Automatically by Hydraulic | Braking device | 2 pieces (air brake) |
Unloading | Automatically by pneumatic | Blades | 20 sets (top&bottom) |
Rewinding device | Air expanding shaft | Operating box | 1 set |
Power supply | 380V 50Hz 3Phase | Tool | 1 set |
Measurement & Weight | Curved roller | Have | |
Measurement
|
L3320*W1460*H1250mm (unwind side) | ||
L2350*W1690*H1190mm (rewind side) | |||
Weight
|
3300kgs |
After Service:
1 The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect performace!
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
5. We supply the consumable spare parts for free.
FAQ of paper straw machine
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.
