Jumbo Paper Slitting Rewinding Machine 60-600gsm Rotary Paper Cutting Machine
-
High Light
Jumbo Paper Slitting Rewinding Machine
,Paper Slitting Rewinding Machine 60gsm
,600gsm Rotary Paper Cutting Machine
-
Machine NameAutomatic Jumbo Paper Rewinding Rotary Non Woven Film Paper Slitting Machines
-
Material Paper60-600 Gsm
-
Unwind Width600-1600 Mm
-
Unwind Diameter1400 Mm
-
Rewind Diameter1400 Mm
-
Minimum Slitting Width35 Mm
-
Working Speed0-200 M/min
-
Speed RegulationBy Inverter
-
Place of OriginChina
-
Brand NameFect
-
CertificationCE
-
Model NumberPF-200FQ
-
Minimum Order Quantity1 set
-
PriceFOB US $14000- 15000/ Set
-
Packaging DetailsWooden case / Automatic Jumbo Paper Rewinding Rotary Non Woven Film Paper Slitting Machines
-
Delivery Timewithin 35 working days after payment confirmed
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability90 sets per month
Jumbo Paper Slitting Rewinding Machine 60-600gsm Rotary Paper Cutting Machine
paper slitting machines

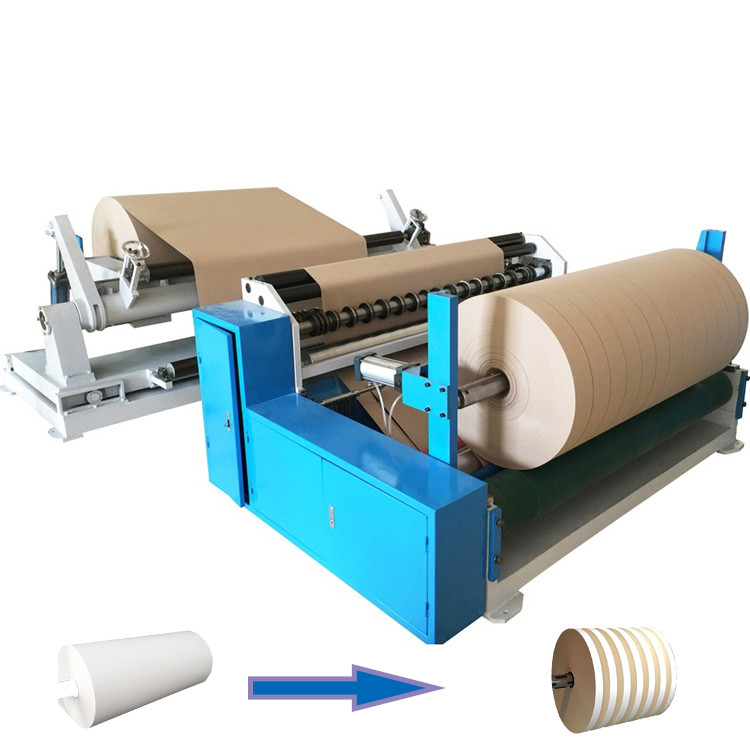

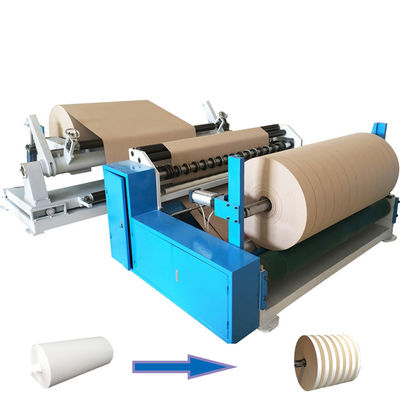

PF-200FQ Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paper board; Bobbin paper; Art paper etc.
Multi Blades Slitting. minimum slitting length is 35mm. Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier. Rewinding side has curved roller and finished rolls can be seperated automatically.
Automatic Jumbo Paper Rewinding Rotary Non Woven Film Paper Slitting Machines
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
Technical parameters of paper slitting machine
| Main Parameters | Control System | ||
| Material paper | 60-600gsm | Main motor | 11kw Wannan |
| Unwind width | 600-1600mm | Electric components | CHNT |
| Unwind diameter | 1400mm | Pneumatic components | Jing wei |
| Rewind diameter | 1400mm | Bearing | Ha er bin |
| Minimum slitting width | 35mm | Main Configuration | |
| Working speed | 0-200m/min | Jumbo paper loading device | 1 pair (76mmID) |
| Speed regulation | by Inverter | Hydraulic lifting device | 1 set |
| Material paper loading device | Shaftless | Discharging air cylinder | 2 piece |
| Loading | Automatically by Hydraulic | Braking device | 2 pieces (air brake) |
| Unloading | Automatically by pneumatic | Blades | 20 sets (top&bottom) |
| Rewinding device | Air expanding shaft | Operating box | 1 set |
| Power supply | 380V 50Hz 3Phase | Tool | 1 set |
| Measurement & Weight | Curved roller | Have | |
|
Measurement
|
L3320*W1460*H1250mm (unwind side) | ||
| L2350*W1690*H1190mm (rewind side) | |||
|
Weight
|
3300kgs | ||
FAQ of paper cup die cutting machine
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport
Q2:: Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3: Do you inspect the finished machines?
A: Yes, we have QC department, they will inspect every machine before packing and provide test video to ensure there is nothing problem of the machines.
Q4: What payment terms are accepted?
A: TT (Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5 : When can the machine be shipped after order is placed?
A It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available
Our products are sold all over the world, you can rest assured.
