| MOQ: | 1 set |
| Price: | FOB $11250 - 12812 / Set |
| Standard Packaging: | Wooden case / Automatic PVC Film Non Woven Thermal Paper Rolls Paper Slitting Machines |
| Delivery Period: | within 35 working days after payment confirmed |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 90 sets per month |
paper slitting machines
The machine is suitable for peeling various roll materials such as thermal paper, bond paper, cash register paper, fax paper, POS paper, ATM paper and other small tape rolls. During the production process, the material is trimmed and slitted according to different needs. Quality and after-sales service are our tenets. We don't just sell products, we sell solutions. We believe that you will be satisfied with our products and services.

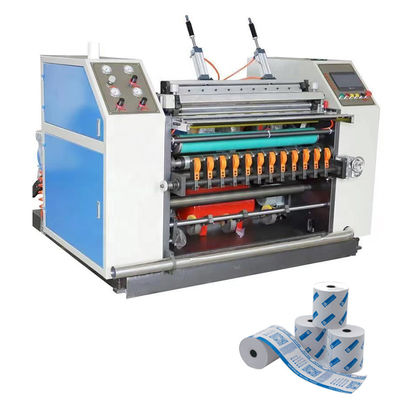

High Speed 150 M / Min Thermal Cash Roll Rewinding Paper Slitting Machines
1. Equipped with Panasonic PLC and Weinview touch screen, all parameters are displayed on the display. You only need to set the diameter and thickness of the coil, and the PLC will automatically provide the correct parameters for the operation of the machine.
2. Equipped with automatic voltage control system to release voltage.
3. With meter counter. You will reach the set data and the machine will stop and trigger an alarm.
4. Use timing belts to avoid overlapping problems.
5. The receiving inverter controls the motor of the main inverter, and the speed can be displayed on the control panel. Motor with frequency converter: 2.2 kW.
6. All gear rollers are processed by dynamic/static balance.
7. Equipped with emergency switch.
Technical parameters of paper slitting machine
| Max unwind width | 860mm |
| Max unwind diameter | 1000mm |
| Rewind width | 50-860mm |
| Max rewind diameter | 150mm |
| Unwinding Shaft | 3” Pneumatic Air Expanding Shaft |
| Slitting Speed | 150m/min |
| Rewinding Shaft in Diameter | 0.5'',1 inch ,Coreless(8mm) |
| Total Power | 2.2kw |
| Weight of Machine | 1000kg |
| Overall Dimension | 2050*1600*1500mm |
FAQ of paper cup die cutting machine
Q1: Are you a manufacturer or a trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up from the airport
Q2 :: Do you have a suitable certificate?
A: Yes, so far we have CE, ISO, etc. We can also issue CO, Form E, etc. if required.
Q3: Do you check finished machines?
A: Yes, we have quality control department, they check each machine before packing and provide test video to make sure there is no problem with the machine.
Q4: What payment terms are accepted?
A: TT (Wire Transfer), Western Union, MoneyGram, LC, etc.
Q5: When will the order be shipped?
A Depending on the model and quantity of the machine, some warehouse machines may be shipped within 3 working days after payment, other customized machines will start production after receiving the deposit, please contact our team for details.
Q6: How about the warranty and after-sales service?
A: Our machines have a two-year warranty and lifetime technical support. Help is always remote by phone or email, then we can provide a suitable solution within 8 hours of analyzing and estimating the problem. Provides remote training and on-site service.
|
|
