This Slitter Rewinding Machine is suitable for Printing&Packaging Industry, converting jumbo roll to a narrow roll(The minimum width is 10mm). Jumbo roll material 60-450gsm, such as cardboard paper, kraft paper, coated paper, silicon paper, plastic film, PET,non-woven, fabric, leather, etc slitting & rewinding.
Technical parameters of fabric pet plastic film Paper Straw jumbo roll Slitting rewinding Machine
| Model | PF-800 |
| Unwinding Roll Wide | 800mm |
| Unwinding Roll Diameter | Ø1400mm |
| Minimum Slitting Wide | 5mm |
| Slitting Precision | ±0.2mm |
| Rewinding Roll Diameter | Ø620mm |
| Machine Speed | 200m/min |
| Machine Power | 9KW |
| Machine Size | 3200x1900x1500mm |
| Machine Weight | 3200KG |
Application 1: Paper Drinking Straw Manufacturing
The paper drinking straw manufacturing processing is similar with paper tube. It consist of three layers of paper. So you must feed three different width rolls into the straw forming machine to make paper straw.Our the model paper slitting machine can make small width paper rolls for manufacturing paper straws(width can less than to 5mm).
Application 2: Insulation paper tape/Anti-rust paper tape
The insulation paper tape and anti-rust paper tape normally have small width rolls type. Manufacturing these products, you must have a set jumbo roll slitting machine with a center and surface rewinding structure.
Application 3: Cigarette/Tobacco paper rolls or tipping paper rolls for rolling
In addition to books and packaging, the product with the largest amount of paper should be cigarettes. Fully automatic cigarette-making machines also need to use very narrow paper rolls (between 20-30mm in width). So our slitting machine is favored by many cigarette paper mills. They use our slitting machine to process large rolls of paper to meet the requirements of cigarette rolling machines.

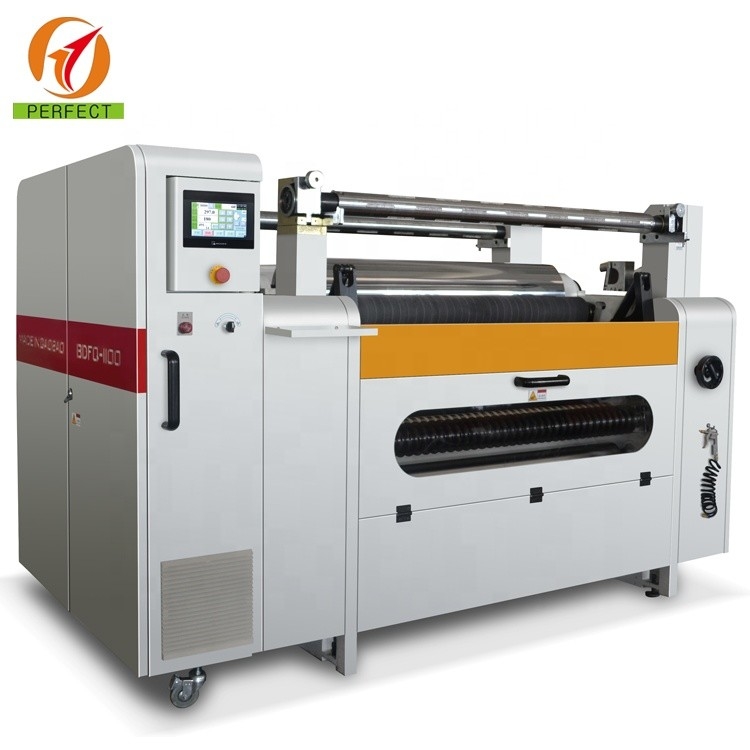

Details of fabric pet plastic film Paper Straw jumbo roll Slitting rewinding Machine
Our products are sold all over the world, you can rest assured.
