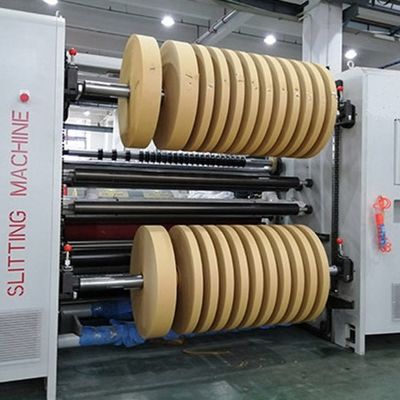

1600mm Full Automatic Non-woven Roll to Roll Paper Slitting Machines
The machine is used for slitting and rewinding various large rolling materials such as paper,(50g/m²-600g/m²) kraft paper,coated paper,aluminum foil,PVC,plastic material,etc.
Features for paper slitting machines
1) This machine adopts PLC touch screen control.Three motor servo control and automatic taper tension, central surface reeling. Frequency control for main motor, keeping speed up and stable operation.
2) It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding,easy for loading and unloading.
3) It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit.
4) Equipped with automatic waste film blowing device.
5) Automatic material loading by pneumatic, matched with air.
Specification for paper slitting machines
|Max. width of unwinding||1300mm||1600mm|
|Raw material Unwinding Diameter||φ1400mm|
|Raw rewinding max. diameter||φ1000mm|
|Rewinding air shaft diameter||φ76mm/ 2pcs(152# can choose)|
|Rewinding air shaft quantity||2pcs|
|Machine cove color||main white|
|Air supply||need air compressor|
|Power supply||3phase 4 wire switch; 380V 50HZ|
Case One: Paper Cups And Paper Bowls And Paper Lid Manufacturing
The model paper slitting rewinding machines widely used in paper disposable containers manufacturers factory. The paper cups,paper bowls forming machine need feed bottom reels to make these products. The machine can well cut jumbo paper rolls into narrow width rolls(maximum diameter can be 1000mm). Paper lid processing also need feeding specific width roll feeding into the forming machine.
Case Two: Paper Bags Manufacturing
Paper bags normal adopt the kraft paper or coated grease proof paper. Our slitting rewinding machine can cut these types paper stock roll into customize width paper rolls,which will feed into paper bags forming machine. But there still many paper bags manufacturer use sheet-feeding paper bags forming machine for some types paper bags. In these manufacturer factory,the paper slitting rewinding machine use to convert after printing paper rolls.
Case Three: Paper Tube & Paper Can
Paper tube is an indispensable tool in the paper product industry. The machine that produces paper tube also needs to input small paper rolls of different widths. These inputting small paper rolls width depend on
the how much diameter paper tube you want to make. Therefore, we must cut the paper jumbo roll into small rolls of different widths to meet the paper tube production requirements. Making paper can processing are similar with the paper tube manufacturing.
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3:How can I find the most appropriated machine for my material?
A:You can tell us the parameters of your material,
Raw width of the material:
Thickness of the material:
Slitting width of the material:
Inner core diameter:
then we can recommend you the most suitable machine with best price for you.
Q4:Will you Teach me to operate the machine?
A:First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself.
Q5 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q6 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
