paper slitting machines

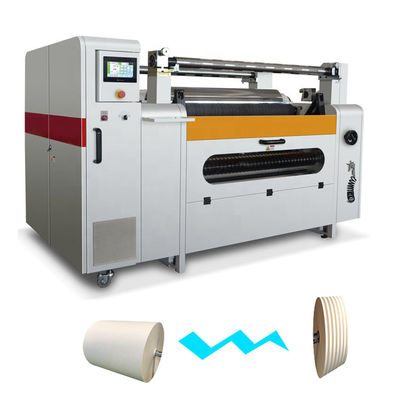

PF-800D Automatic aluminium foil roll cutter slitter rewinder machine is suitable for slitting and rewinding jumbo rolls, such as polyester woven fabric, paper, film, PVC, aluminum foil, and so on. Machine adopts three-phase asynchronous frequency conversion speed adjusting motor, which keeps stable running when speed up. Automatic meter counting, automatic stop when it reaches the setting meter value on touchscreen panel. Loading with air shaft system, 3 inch(optional), unwinding tension controlled by magnetic powder brake.
Automatic PVC Film Non Woven Thermal Paper Rolls Paper Slitting Machines
Unwinding Unit
1. Auto loading system, can loading 1400mm diameter of jumbo roll
2. Auto tension control and magnetic powder clutch system.
3. Edge position control system by correction motor.
Rewinding Unit
1. Two pcs rewinding roll, rewinding diameter can do 620 mm
2. Rewinding auto tension control, magnetic power brake 2PCS
3. Air shaft 2 PCS, cylinder control the air shaft up and down.
Technical parameters of paper slitting machine
| Model | PF-800D |
| Unwinding Roll Wide | 800mm |
| Unwinding Roll Diameter | Ø1400mm |
| Minimum Slitting Wide | 5mm |
| Slitting Precision | ±0.2mm |
| Rewinding Roll Diameter | Ø620mm |
| Machine Speed | 200m/min |
| Machine Power | 9KW |
| Machine Size | 3200x1900x1500mm |
| Machine Weight | 3200KG |
| Name | QTY |
| 10-19 wrench | 1set |
| Screwdriver | 2pcs |
| Adjustable wrench | 1pcs |
| Oil gun | 1pcs |
| Allen wrench | 1set |
| Operating manual | 1pcs |
| Inverter manual | 1pcs |
| Rack horizontal pad | 1set |
| 1Ton small lifting equipment on machine | 1set |
FAQ of paper cup die cutting machine
Q1: Are you a manufacturer or a trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up from the airport
Q2:: Do you have relevant certificate?
A: Yes, so far we have CE, ISO, etc. We can also issue CO, Form E etc. if you need it.
Q3: Do you inspect finished machines?
A: Yes, we have QC department, they will inspect each machine before packing, and provide testing video to make sure there is no problem of the machines.
Q4: What payment terms are accepted?
A: TT (Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5: When can the machine be shipped once the order is placed?
A It depends on the machine model and quantity, some machines in stock can be shipped out within 3 working days after payment is cleared, other customized machines start production after deposit arrives, please contact our team for information detailed.
Q6: What about warranty and after-sales service?
A: Our machines have a two-year warranty and lifetime technical support. Help is always just a call or email away, then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service are available.
Our products are sold all over the world, you can rest assured.
