| MOQ: | 1 sets |
| Price: | USD 24000-28000 / SET |
| Standard Packaging: | Wooden case |
| Delivery Period: | 30 working days |
| Payment Method: | T/T, L/C,Western Union, MoneyGram, |
| Supply Capacity: | 100 sets |

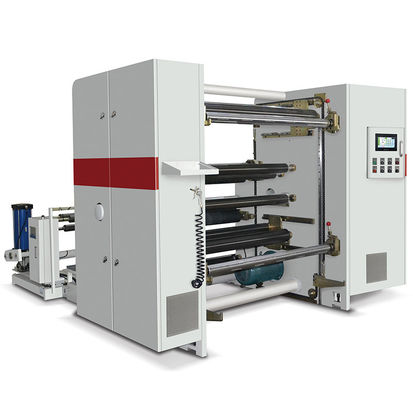

1600mm Automatic high speed paper roll paper slitting machine
1600mm Automatic high speed paper roll paper slitting machine is suitable for slitting and rewinding of various materials, such as 30-400gsm kraft paper, white cardboard, coated paper, PVC film, non-woven Material. It is widely using in the paper bags manufacturing,paper cups bottom manufacturing,paper tube manufacturing and other paper products manufacturing industry.
Specification:
| Model | FQ-1600A |
| Slitting thickness | 30g㎡-400g㎡ |
| Max unwinding diameter | 1400 mm |
| Max unwinding width | 1600mm |
| Max rewinding diameter | 1000mm |
| Slitting width | 30-1600mm |
| Rewinding air shaft diameter | 76mm(3 inch)/ 2pcs(152# can choose) |
| Rewinding air shaft QTY | 2pcs |
| Correct Precision | ±1mm |
| Slitting Precision | ±0.2mm |
| Slitting Speed | 50-350m/min |
| Total Power | 26kw |
| Machine Size | 450*380*190cm |
| Machine Weight | 4500kg |
| Machine cove color | Mainly white |
Features
1.Machine use PLC, servo three motor synchronize control, , auto tape tension, center and surface rewinding together.
2.Machine use frequency adjust speed, keep stable running when speed up.
3.Auto count meter, auto alarm, it can automatic stop after it reached set meter on computer .
4.Circular knife slitting waste edge of roll, and it’s auto let out by fan
5.Machine including Web Guide device(EPC) through sensor to control motor to move the edge. Guarantee unwinding feeding precision.
6.Round knife slitting ,and waste edge of roll, and it’s auto waste by fan .
After Sale Service
1) 1 year warranty service.
2) Free replacement of parts within 1 year (free shipping).
3) Parts are provided free of charge within 2 years, but no free shipping.
4) We provide Operation & Maintenance CD.
5) When there is a problem with the machine, please take a video of the problem and send it to us.
6) We will arrange professionals to help you deal with it through video or document tutorials.
About us
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
|
|
