PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine

PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine

  • High Light

    Single Pe Coated Paper Tea Cup Machine

    ,

    PFD 16 Paper Tea Cup Machine

    ,

    Automatic Disposable Cup Making Machine

  • Name
    PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines
  • Applicable Industries
    Hot Drink And Cold Drink Cup
  • Cup Size
    3-16oz ( Or Customized)
  • Cup Bottom Diameter
    35-70mm
  • Cup Up Diameter
    46-100mm
  • Paper Cup Height
    32-135mm
  • Material
    Single Pe Coated Or Double Pe Coated
  • Power
    4Kw 380V
  • Place of Origin
    Henan, China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PFD-16 Double Pe Coated Paper Cup Making Machines
  • Minimum Order Quantity
    1 set
  • Price
    USD 13200- USD14000 / set
  • Packaging Details
    wooden case/ PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines
  • Delivery Time
    35 days after receiving payment
  • Payment Terms
    T/T, Western Union, L/C, , MoneyGram
  • Supply Ability
    300Sets per Month PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines

PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine

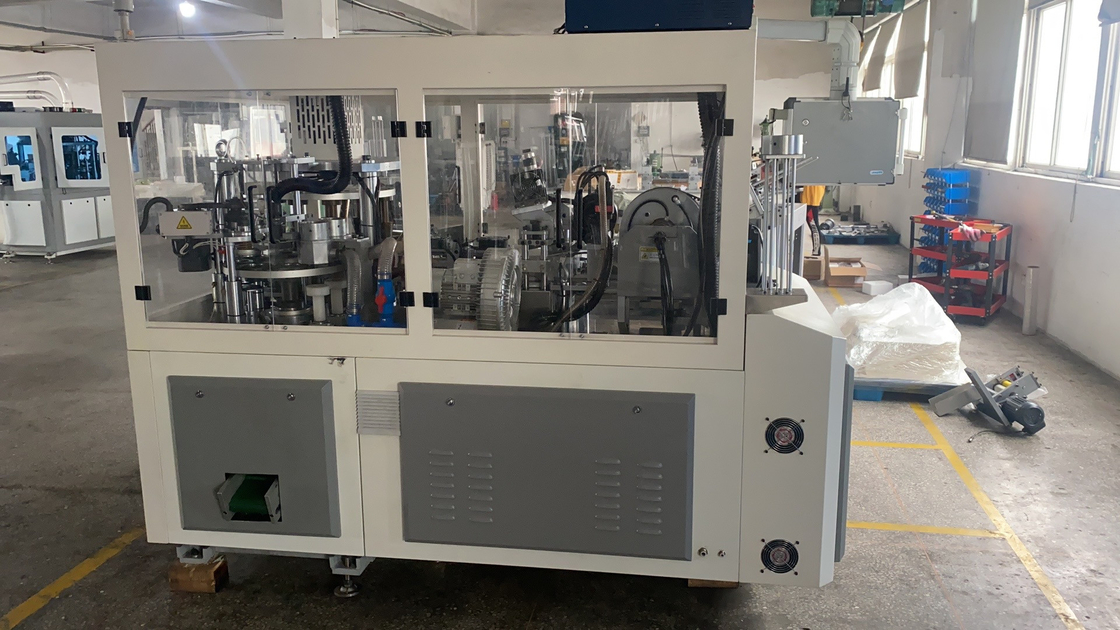

PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines ​



PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines is suitable for 180-350gsm single pe coated or double coated paper, could make 3-16 OZ cup for hot and cold drink. Machine speed is 70-90 pcs/min, PLC control system makes the machine easily operating, cup collection saving more labor cost, Automatic oil lubrication extending the lifetime of machine, our machine has one year warranty. We support techincal on line and video guidance. It is a good chooice to start your business for paper cup.



♦Technical Parameters♦



Type

PFD-16 Single Double Pe Coated Automatic Paper Cup Making Machines

Cup size:

3-16 oz  (other customized size)

Production capacity

70-90 pcs/minutes

Power source:

380V 50HZ( or customized )

Suitable Material:

180-350g/m2 (single or double-coated paper)

Air source

0.4-0.5 Mpa

Total Power:

4 KW

Package size:

2.25*1.45*1.95 m, 2500KG

Packaging of cup collection

1100*1000*1000 70kg

H.S code for customs:

8441309000

 PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine 0



A: top diameter:

Min 46mm---Max 100mm

B: bottom diameter

Min 35mm---Max 70mm

C: total height

Min 32mm---Max 135mm

PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine 1

PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine 2PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine 3



♦Feature♦



1: Using automatic lubrication system ensures high-speed operation of the machine for a long time without a break.

2: Intelligent design,PLC automatic control,servo motor,automatic fault alarm,counting & collection, detection,parking, more accurate, easier operation and the labor is greatly reduced.

3: Automatic shutdown isolation.

4: Automatic oil lubrication, no need worker spraying oil manually which greatly saves labor.



Company Information



Zhengzhou Perfect Co., Ltd. specialize in producing paper cup machine, high cup machine, paper bowl machine, paper box machine, dining box machine and other paper packaging equipments. Our company integrates research and development, production, sales and maintenance, constantly introducing new and high technology, focusing on after-sales service.



With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.



We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



PFD 16 Single Pe Coated Paper Tea Cup Machine Automatic Disposable Cup Making Machine 4



FAQ



Q1: Delivery of  Automatic Disposable Pe Coated Coffee Paper Cup Machine?



A: Within 35 days after payment confirmed.



Q2 : What payment terms are accepted?



A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q1: Do you have relevant certificate?



A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q4: How about the warranty and after-sale service?



A: Our machines have two years warranty and lifetime technical support.  Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem.
