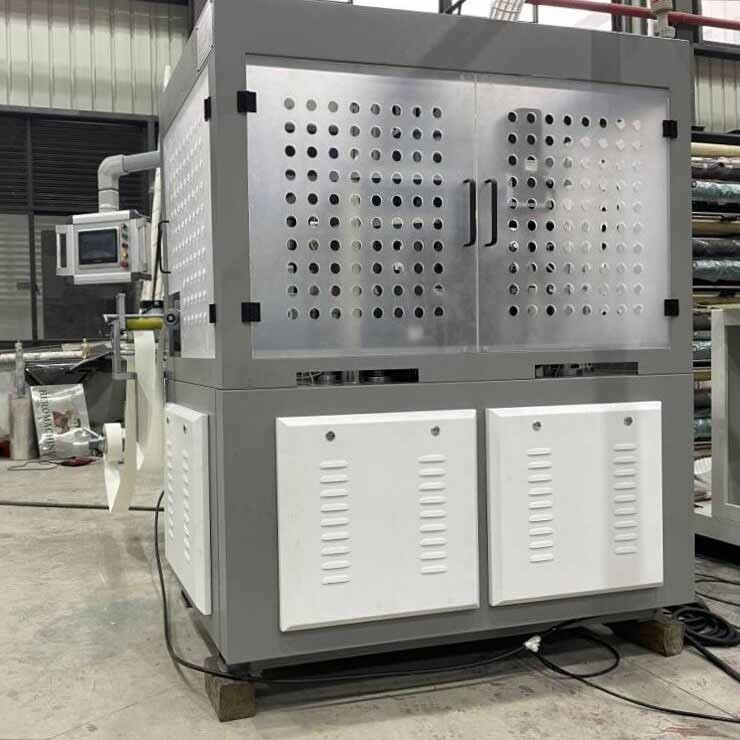

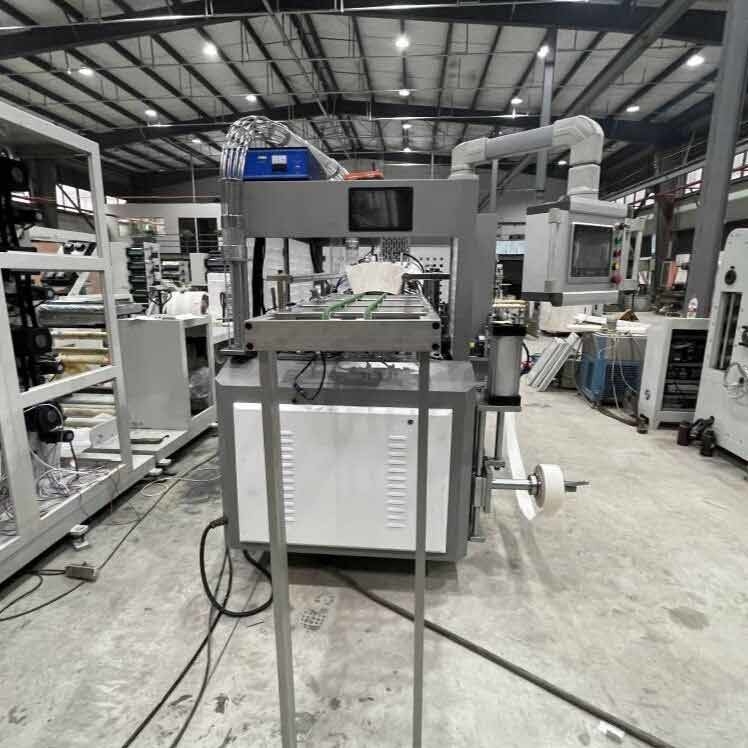

140-170 pcs/min 4-16 oz High Speed Coffee Tea Paper Cup Forming Machine
♦Technical Specification♦
| Type | PF-OC100 |
| Cup size: | 4-16 oz (other customized size) |
| Cup material |
170-380 gsm single or double PE/PLA/ coated paper aluminum foil paper (0.25-0.5 mm) |
| Production capacity | 140-170 pcs/min |
| Power source: |
380V 3- phase 50HZ 34kw Running consumption is 14kw (please inform us your power in advance) |
| Air Supply | 0.6 Mpa,(running consumption 0.4Nm3/min) |
| Dimension | 2.46*1.62*1.78 m |
| Weight | 3000KG |
| H.S code for customs | 8441309000 |
PF-OC100 features full servo driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear / chain transmission and cam design paper cup machine. It provides flexibility, speed, affordable capital cost and low maintenance.
♦ Advantage ♦
Paper cup bottom and top forming driven mechanism
Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil lubricant, which solved the negative effects of cam and bearing wearing and impacting while machine running at high speed. This breaks through the traditional paper cup machine must using cam to control the lifting and time.
Paper cup bottom sealing process
PF -150 changed the working procedure of bottom sealing. First Leister hot air preheating the cup body, then the cup bottom paper coming. This procedure makes fast sealing while the hot and cold paper touched each other. Then the second Leister hot air heating the bottom to go next knurling process. It makes the paper cup bottom seal more firmly while machine running at high speed. Traditional paper cup machine they do the double bottom heating after bottom paper come to the cup body. PF -150 new design makes the bottom knurling much better.

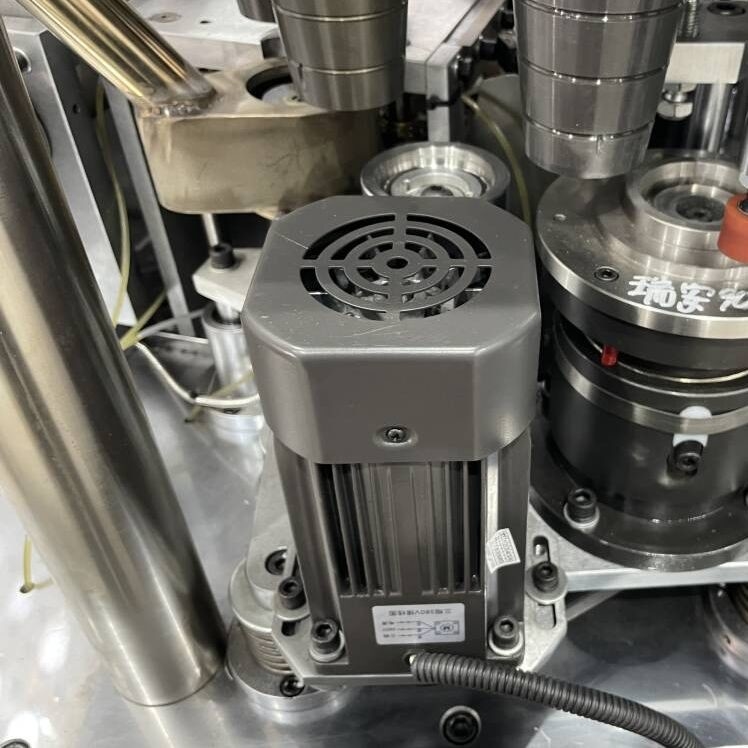

Paper cup servo indexing mechanism
PF -150 uses servo indexing mechanism, replaced the traditional paper cup machine which uses the Geneva indexing mechanism. It's new in paper cup machine manufacture field. Servo indexing mechanism no need oil lubricant, no need maintenance, easy installation. It is more flexible for the machine self- adjustment while machine change the speed, even machine working in worse running conditions.
Paper cup blank shuttle& rotary placer mechanism
PF -150 adopts the most advanced blank shuttle & rotary placer mechanism, replaced traditional up and down movement suction feeding way to avoid paper move problem. Rotary placer mechanism pick and put paper more stable, which ensure the paper feeding to cup body sealing part more smoothly and steady.
♦Application♦
Full servo high speed automatic double wall paper cup forming machine is our most recently developed product, which is an ideal equipment both for making both hot and cold drinking paper cups for (coffee, tea, ice cream, juice, beer, soup, food, snacks, etc). This machine throughout the entire machine, Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear / chain transmission and cam design paper cup machine.
♦Configuration♦
| Medium PLC (AM403-CPU1608TN+ module) | Inovance |
| 10-inch touch screen | Inovance |
| Inverter (MD200) | Inovance |
| Servo motor | Inovance |
| EtherCat network cable (CAT6A industrial grade) | Customize |
| Power switch | Taiwan MEAN WELL |
| Reducer | domestic customization |
| Proximity switch | Autonics |
| Photoelectric switch | Autonics |
| Steam source pressure protector | Autonics |
| Button | Autonics |
| Remote control | Domestic |
| Circuit breaker | Schneider, France |
| AC contactor | Schneider, France |
| Small relay (including base) | Izumi, Japan |
| Terminal block | Phoenix, Germany |
| Power phase sequence protector | Semute |
| Detection System | Inovance |
