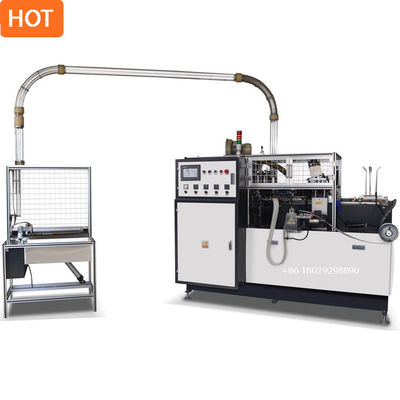

PFD-16 High speed paper cup making machine with paper collection system
PFD-16 automatic paper cup making machine is an ideal equipment both for single PE and double PE paper, which can produce different sizes of paper cups with a series of continuous processes including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. It is improved in stability and efficiency after comprehensive technical improvements. It is ideal equipment for making both hot and cold drinking paper cups for (coffee, tea, ice cream, juice, beer, soup, food, snacks, etc).
♦Technical Specification♦
Type | PFD-16 |
Cup size | 4-16 oz (other customized sizem Mould changeable) |
Production capacity | 65-85 pcs/min |
Power source | 3P 220V/380V 50HZ(please inform us your power in advance) |
Suitable Material | 150-350g/m2(Single or Double PE-coated / laminated paper) |
Total Power | 4 KW |
Air Requirement | 0.4-0.5 m3/min |
Machine Size | 2000 x 1230 x 1700 mm |
H.S code for customs | 8441309000 |
Quality Guarantee | One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee. |
Installation and Debugging | we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 120 USD dollars /day |
♦Configuration♦
Item | Brand |
PLC | Delta |
Touch Screen | Delta |
Converter | Delta |
Servo Motor | Xinjie |
Servo Driver | Xinjie |
Relay | Schneider |
Air switch | LG |
Power Source | Delta |
Contactor | Schneider |
Thermo rely | Schneider |
Solid state relay | Yudian |
Temperature Control | Delta |
Photoelectric Sensor | Panasonic |
Cylinder photoelectric | Aoyi |
Cylinder proximity switch | Aoyi |
Ultrasonic Device | KEJIAN |
Button | Schneider |
♦ Advantages ♦
1. Three times paper feeding.
Paper can be well adjusted with three times feeding process, avoid the irregularity during folding paper fan.
2. Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the same time, one paper fan match one bottom to avoid paper waste. Failure alarm, automatic shutdown.
3. PLC control
The machine is more intelligent, the control is more accurate, easier operation and the labor is greatly reduced.
4. Multiple cooling fans for heat dissipation
Multiple cooling fans installed to increase heat dissipation and speed up cooling, ensuring that the machine keep suitable temperature when working.
5. Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, no need worker spraying oil manually which greatly saves labor.
6. Waste paper conveying.
Waste paper discharged by the tube. When the machine working, avoid the waste paper enter the machine inside part, not easy to clean, affect machine running.
7. Sheave drive
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate.
8. Bottom punching system
When give the bottom paper, sometimes the bottom paper will be turned over, cannot match the paper fan well, this machine shorten the process, give bottom directly, avoid the problem.
9. Quality ultrasonic and electrical configuration
Built-in ultrasonic, save the external space of the machine, reduce the size of the whole machine, and reduce the area occupied by the machine.
