| MOQ: | 1 set |
| Price: | USD 12,999 per set FOB Ningbo (negotiable) |
| Standard Packaging: | Seaworthy package, 2250*1340*1900mm, 2.6 T |
| Delivery Period: | within 30 working days after payment confirmed |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 35 Set per Month |

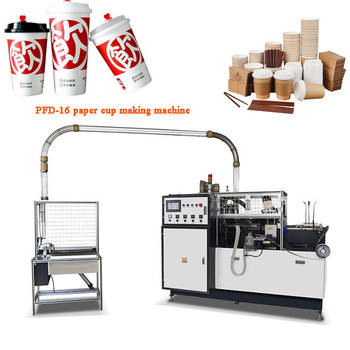

| Type | PFD-16 |
| Cup Size | 4-16 oz (other customized size Mould changeable) |
| Production Capacity | 65-85 pcs/min |
| Power Source | 3P 220V/380V 50HZ (please inform usyour power ina dvance) |
| Suitable Material | 150-350g/m2(Single or Double PE-coated/laminated paper) |
| Total Power | 4KW |
| Air Requirement | 0.4-0.5 m3 /min |
| Weight | 1700KG |
| Machine Size | 2000 x 1230 x 1700 mm |
| H.S Coed for Customs | 8441309000 |
1.Sensor Alarming
2.Ten Station Turntable
3.Multi Pass Preheating Furnace
4.PLC Control
The machine is more intelligent, the control is more accurate, easier operation and the labor is greatly reduced.
5.Multiple Cooling Fans for Heat Dissipation
Multiple cooling fans installed to increase heat dissipation and speed up cooling, ensuring that the machine keep suitable temperature when working.
6.Automatic Oil Lubrication System
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, no need workers praying oil manually which greatly saves labor.
7.Waste Paper Conveying
Waste paper discharged by the tube. When the machine working, avoid the waste paper enter the machine inside part, not easy to clean, affect machine running.
Configuration
|
Item
|
Brand
|
| PLC |
Delta
|
| Touch Screen |
Delta
|
|
Converter
|
Delta
|
|
Servo Motor
|
Xinjie
|
|
Servo Driver
|
Xinjie
|
|
Relay
|
Schneider
|
|
Air switch
|
LG
|
|
Power Source
|
Delta
|
|
Contactor
|
Schneider
|
|
Thermo rely
|
Schneider
|
|
Solid state relay
|
Yudian
|
|
Temperature Control
|
Delta
|
|
Photoelectric Sensor
|
Panasonic
|
|
Cylinder photoelectric
|
Aoyi
|
|
Cylinder proximity switch
|
Aoyi
|
|
Ultrasonic Device
|
KEJIAN
|
|
Button
|
Schneider
|
Details
Video
Video
|
|
