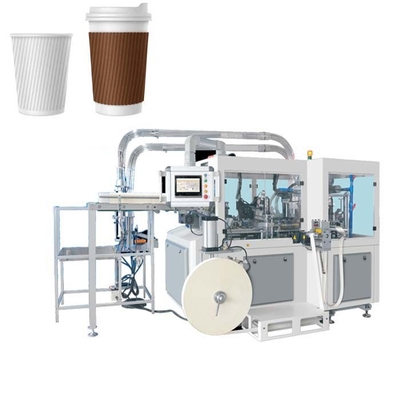

Disposable Fully Automatic Swastik Paper Cup Machine With Price List New Top Double Wall
Paper Cup Machines
The PF-OC100 is equipped with complete servo technology throughout the machine. The servomotors operate independently to control each station with considerable precision and work together to coordinate the synchronized movement. Replace the design with the hook / sequence machines and hook on paper cups on the market. It offers flexibility, speed, affordable capital costs and low maintenance..
Full Servo High Speed 140-170 Pcs / Min China Automatic Paper Cup Making Machines
This machine has powerful functions. Paper cup top and bottom die driving mechanism adopts crankshaft control and servo motor instead of traditional cam drive, no lubricating oil is needed, which solves the problem of cam and bearing wear when the machine is running at high speed. The process of closing the bottom of paper cups is also very powerful. This cup machine changes the closing process afterwards. First, Leister hot air heats the cups, then a second pass of Leister heats the bottom air for the next assembly. If the machine runs at high speed, it makes the bottom of the paper cups seal more firmly. The new design improves the effect of lower cassette. This paper cup machine has advanced servo indexing mechanism for paper cups, using servo indexing mechanism to replace the traditional paper cup machine. The servo indexing mechanism requires no oil lubrication, no maintenance and easy installation. While the machine is variable speed, the machine is more flexible in self-adjustment, even if the machine works under poorer operating conditions.
Technical parameter of the paper cup machine
|4-16 oz (other customized size)
170-380 gsm single or double PE/PLA/ coated paper
aluminum foil paper
380V 3- phase 50HZ 34kw
Running consumption is 14kw
(please inform us your power in advance)
|0.6 Mpa,(running consumption 0.4Nm3/min)
|H.S code for customs
