OEM 10kw Paper Cup Printing And Punching Machine 3000x1400x2000mm

OEM 10kw Paper Cup Printing And Punching Machine 3000x1400x2000mm

  • High Light

    10kw Paper Cup Printing And Punching Machine

    ,

    Paper Cup Printing And Punching Machine 3000mm

    ,

    paper cup blank punching machine 2000mm

  • Name
    10kw 150-200 Times/min Automatic Paper Cup Punching Printing Cup Making Machine
  • Power
    10kw
  • Oil Lubrication
    Manual
  • Weight
    3000kg
  • Dimension
    3000x1400x2000mm
  • Cutting Speed
    150-200 Times/min
  • Place of Origin
    Henan, China
  • Brand Name
    FECT
  • Certification
    CE
  • Model Number
    CQ850
  • Minimum Order Quantity
    1 set
  • Price
    USD$ 19841.00/set
  • Packaging Details
    Export-standard and sea-worthy wooden case.
  • Delivery Time
    Within 35 days after deposit received
  • Payment Terms
    30% T/T as deposit in advance, the balance by T/T after production
  • Supply Ability
    20 Set/Sets per Month 850 paper cup blank printing die cutting machine

OEM 10kw Paper Cup Printing And Punching Machine 3000x1400x2000mm

10kw 150-200 times/min Automatic Paper Cup Punching printing cup making machine



Cutting size: 3-32 oz

Speed: 170-230times/min (600-1000pcs/min)

Roll diameter: Max 1400mm

Roll width: Max 850mm

Supply Ability: 20 Set/Sets per Month 850 paper cup blank printing die cutting machine

Quality Guarantee: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.


♦Features♦
1. Unwinding, web guiding, printing, IR drying, die-cutting, waste, rewinding, trimming, rewinding, can be finished in one process

2. The rubber roller can break away automatically while parking, and running at alow speed, in order to avoid ink being ary.

3. Adopt the anilox roller to spread ink
4. Each printing unit have one IR drier

5. Unwinding and rewinding are controlled by magnetic power brake, clutch (or by automatic tension controller of Mitsubishi, made in Japan)
6. The main motor is adopted the import stepless, regulation of frequency conversion
7. Each printing unit adopt 360 for registration





When you purchase machines, high-quality products, good service and favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so chose us.

We have won the trust and support from customs home and abroad. In order to provide better products and service, our company emphasis on the recruit of the international talents and has abundant technical power. It is well-worth mentioning that we always follow the principle:to serve our customers with a high sense of responsibility.Our workers are all high-motivated and our engineers take care of every detail and adopt strict factory quality standard with the philosophy "God is in the details".



♦Technical parameters♦

Cutting speed 150-200 times/min
Max. web width 860mm
Max. unwind diameter 1300mm
Max. cutting size 850mmX450mm
Precision ±0.15mm
Voltage 380V±
Power 10kw
Oil lubrication Manual
Weight 3000kg
Dimension 3000x1400x2000mm


FAQ
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider, Delta and etc. For the machine device, web guiding, video monitor, pneumatic-unwinding loader,electric-rewinding unloader, slitting station rotary die-cutting station, lamination and waste rewinding are optional. For the specific combination, pls contact us.

Q: How does your factory do regarding quality control?
A: Quality is the priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.


Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural, not by a human, we can send the new parts to you for free.

Q: What are the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.


Packaging Details
Wooden Case/ 850 paper cup blank punching die cutting machine

Package detail Wooden case/ paper cup blank printing die cutting machine
Package size 39m×18m×2.2m
Gross weight 3500kg



Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.



Product Description

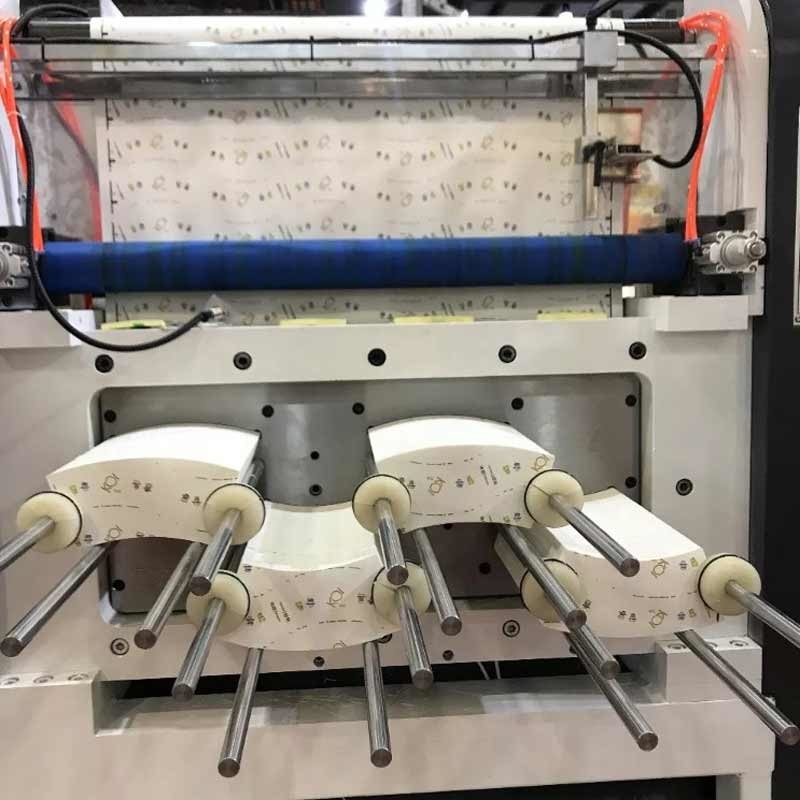

This CQ850 paper cup blank punching die cutting machine is fully automatic with paper feeding, cutting and rewinding function.

♦Application♦
This is an ideal machine for paper cup, paper bowl factory to cut many kinds of the paper cup, coffee cup, paper bowl, paper box, etc.
