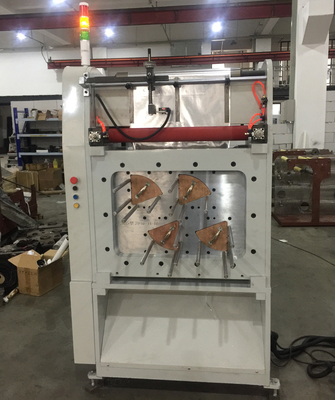

Flatbed PE Coated Kraft Paper Cup Punching Machine 170 Times/Min

Flatbed PE Coated Kraft Paper Cup Punching Machine 170 Times/Min

  • High Light

    Paper Cup Punching Machine 10KW

    ,

    Kraft Paper Cup Punching Machine

    ,

    Flatbed punching machine 170 Times/Min

  • Product Name
    PLC Automatic Flatbed PE Coated Kraft Paper Cup Punching Machine
  • Control System
    Motor
  • Speed
    170 Times/min
  • Raw Material
    100-900 G/m2
  • Max. Roll Diameter
    1300mm
  • Max. Cutting Width
    850mm
  • Finished Product
    Paper Cup Fan Box Fan Bowl Fan Aluminum Foil Etc
  • Dimension
    3000*1400*2000mm
  • Power
    10KW
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    CQ850 PLC Automatic Flatbed PE Coated Kraft Paper Cup Punching Machine
  • Minimum Order Quantity
    1 Set
  • Price
    USD 18860 To USD 19000 Per Set
  • Packaging Details
    Export-Standard And Sea-Worthy Wooden Case
  • Delivery Time
    30 Work Day
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Sets Per Month

Flatbed PE Coated Kraft Paper Cup Punching Machine 170 Times/Min

PLC Automatic Flatbed PE Coated Kraft Paper Cup Punching Machine



This machine use the automatic stamping die cutting technology, die cutting and cleaning waste, in addition to the traditional process of division of labor link, eliminate the cutting link in the raw paper loss, also timely avoid the second pollution, effectively improve the utilization rate of raw materials and finished products.



♦Techincal parameter♦



Model CQ-850
Control system AC-Servo Motor, PLC
Speed 150-200 times/min
Raw Material 100-900 g/m2
Net weight 3000kgs
Voltage supply 10kw
Air source 380v50hz 3-phase
Dimension 3000*1400*2000mm
Max roll paper feeding width 850mm
Max. roll diameter 1300mm
Max. roll width 860mm





Features♦



1. Cut the roll paper directly , control the waste.



2. Automatic lubricating system.



3.  Strong frame ,easy operate.



4.  Automatic and request less labour



5. Using the application PLC microcomputer control system and LCD visual man-machine interface, implements the whole work process automation.



Flatbed PE Coated Kraft Paper Cup Punching Machine 170 Times/Min 0
