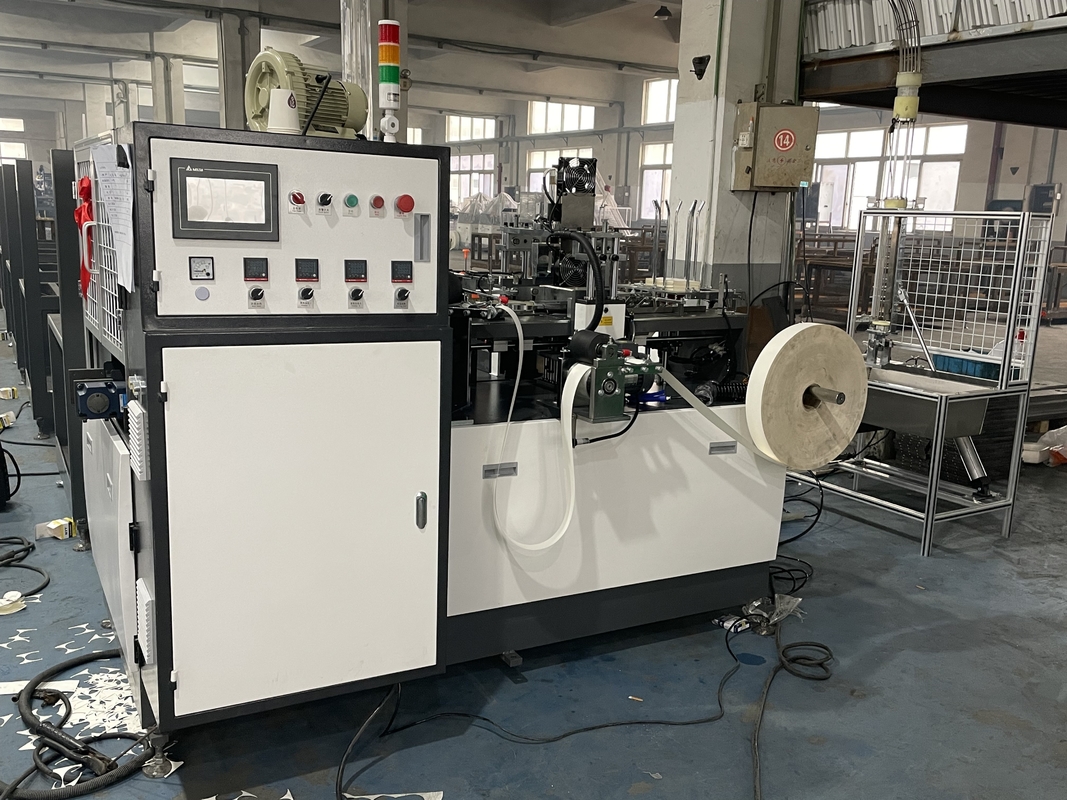

ODM 3-16oz Disposable Cup Manufacturing Machine 2000x1230x1700mm

Type

PFD-16

Cup size:

40ml-16 oz  (other customized size)

Production capacity

65-85 pcs/min

Power source:

380V/ 220V 50HZ(please inform us your power in advance)

Suitable Material:

150-350g/m2 (Double-coated paper)

Air source

0.4-0.6 Mpa

Total Power:

6 KW

Weight:

1680KG

Machine size

2100 x 970 x 1500 mm

Package size:

2200 x 1100 x 1900 mm (4.598CBM)


A: top diameter:
Min 46mm---Max 110mm
B: bottom diameter
Min 35mm---Max 70mm
C: total height
Min 32mm---Max 132mm

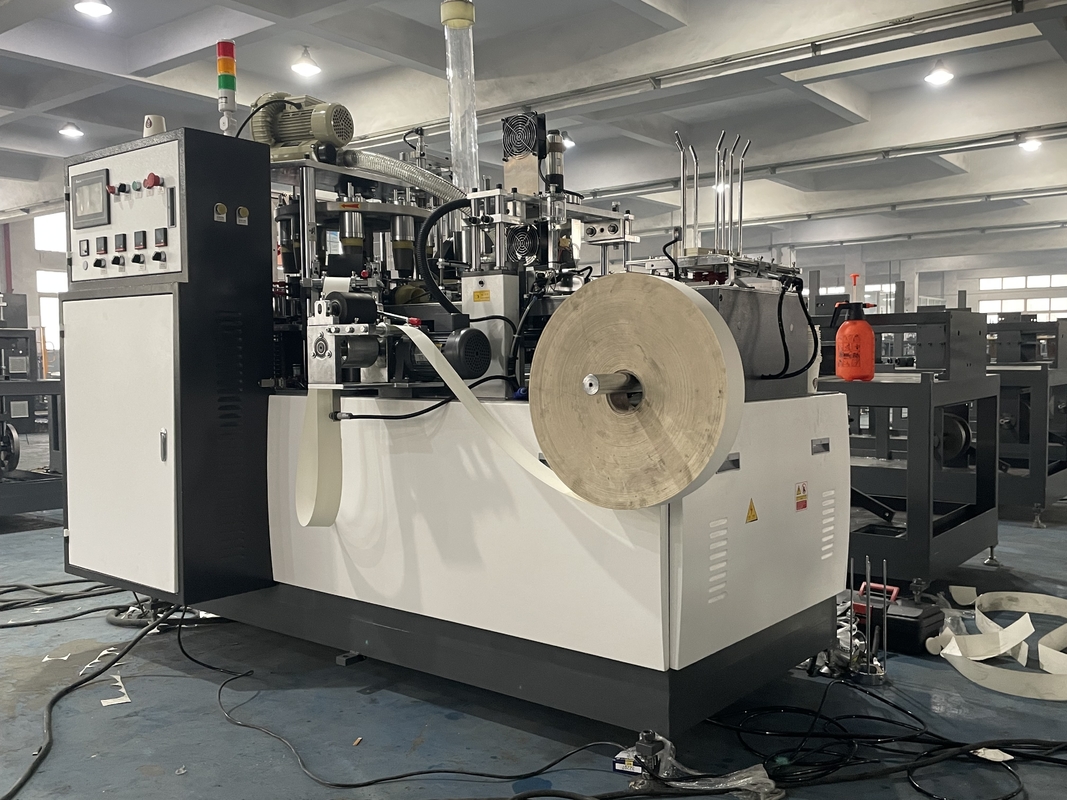

Overall frame structure
The overall design is a box structure with welded ribs on the sides. The spray lubrication system is used to reduce wear and dissipate heat effectively so that the machine has a longer life and more stable operation.

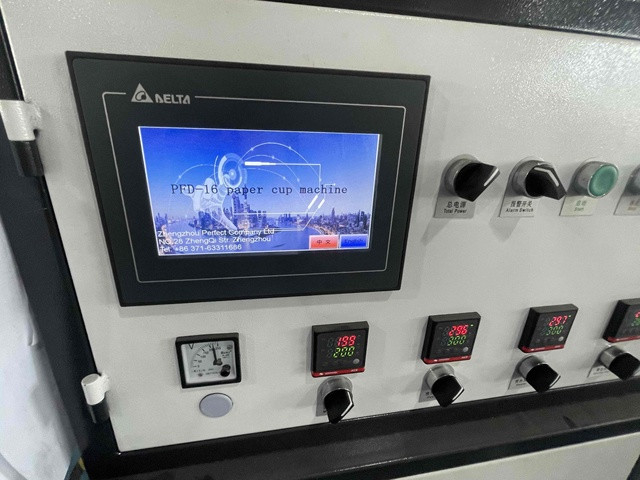

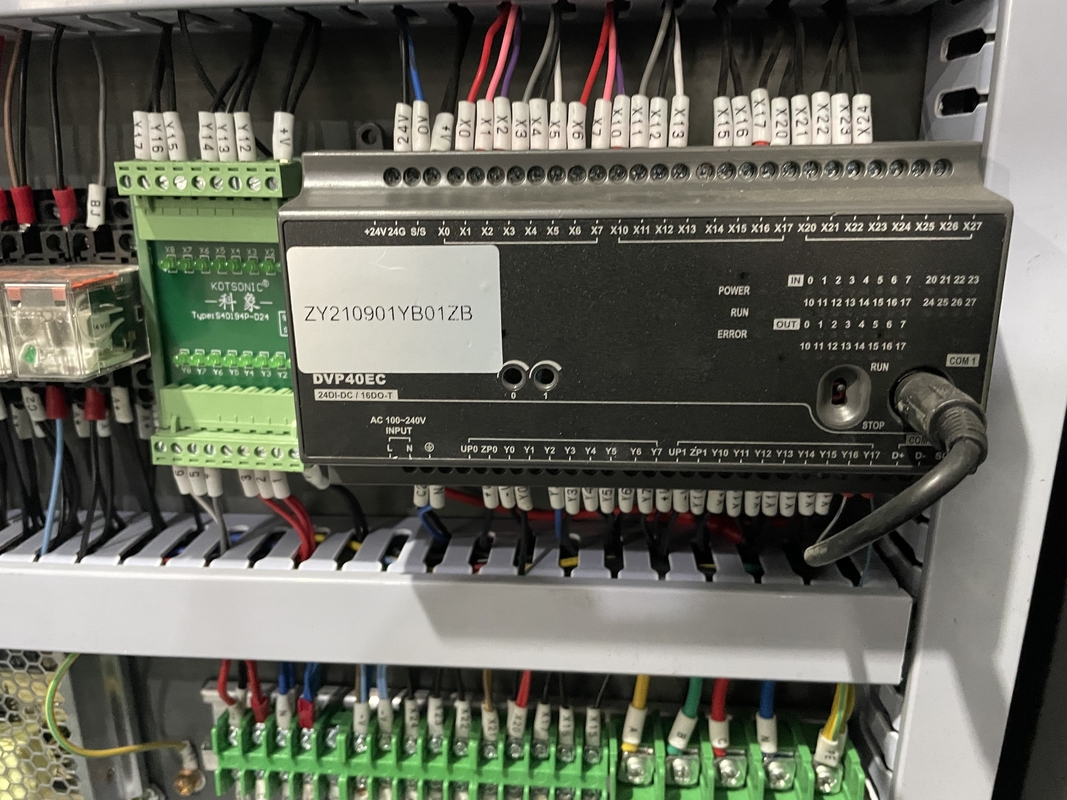

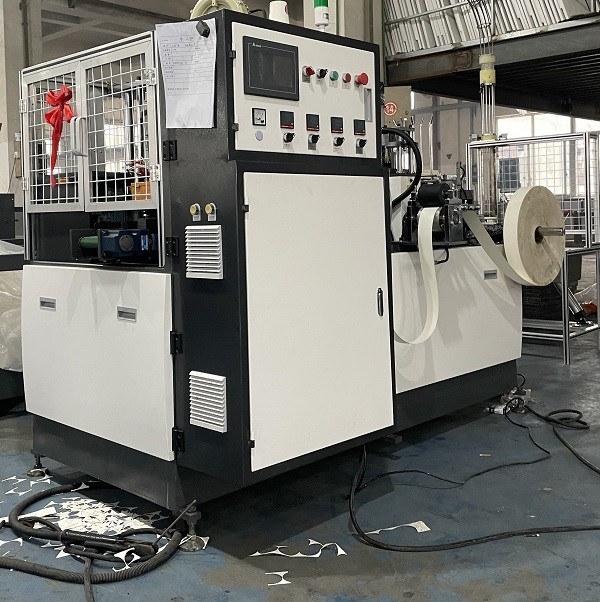

Control system:
The machine is controlled by PLC, which improves intelligence and makes the stroke more precise and accurate. Reduce labor.

Ultrasonic cooling fan:
Multiple fans operate at the same time to increase heat dissipation and speed up cooling so that the machine can maintain a proper temperature during operation.

Paper feeding multiple times:
Paper feeding three times,
multiple mediations to avoid
unevenness on both sides of
the paper cup.

Light Eye Detection
The encoder and the light eye control the machine at the same time, a fan-shaped plate with a cup bottom to avoid waste. Failure alarm, automatic shutdown.

Sheave drive
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate

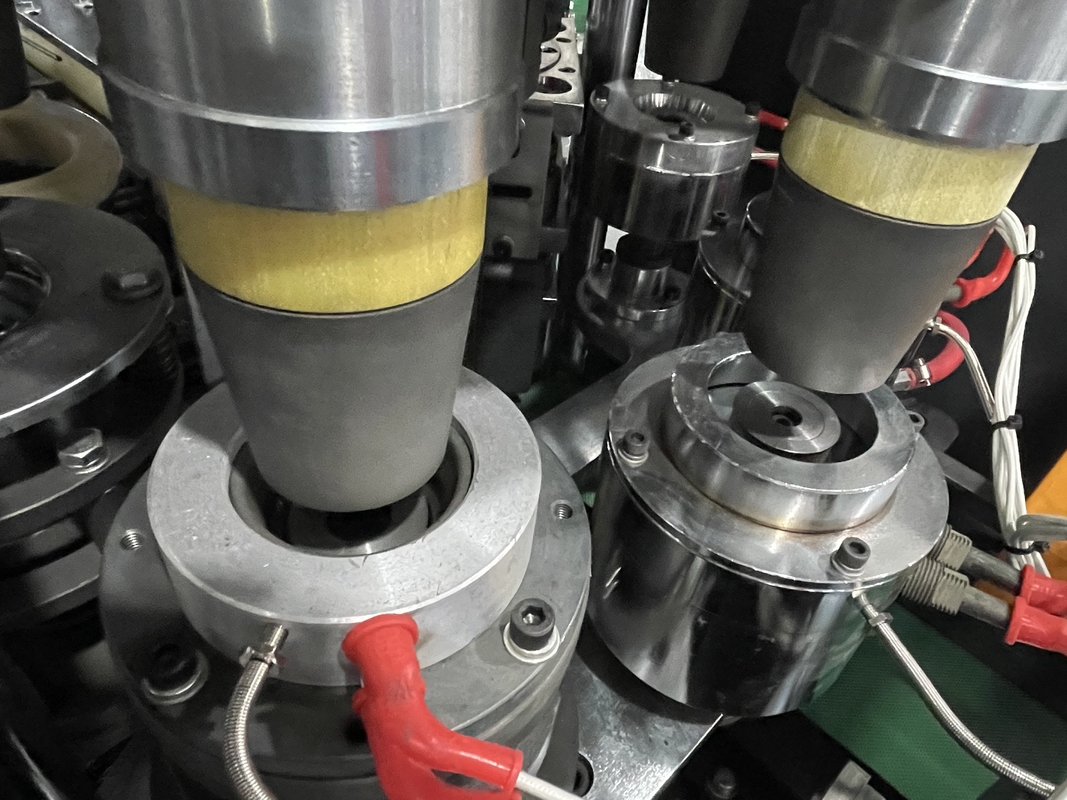

Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step.

Bottom paper cleaning:
Guided by the conveyor belt, the waste paper is discharged. To avoid waste paper falling into the machine when the machine is running, it is not easy to clean up and affect the work of the machine.

Automatic oiling system:
The machine automatically fills and lubricates each position that needs to be lubricated through copper pipes, saving labor and making the machine life longer.

Auto cup counting & collection device:

The automatic paper cup collection device has an automatic counting function, which greatly reduces the labor cost
