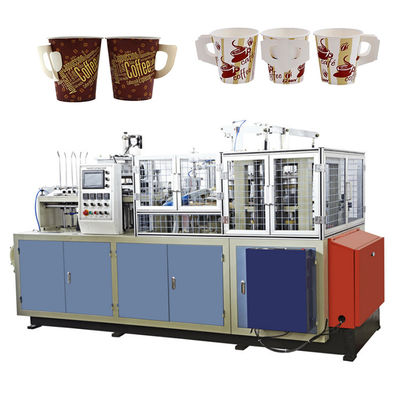

Fully Automatic Single PE Coated Paper Cup Maker Machine With Handle
-
High Light
55pcs/min paper cup maker machine
,300g/m2 paper cup maker machine
,6KW paper coffee cup making machine
-
NameFully Automatic Single Pe Coated Coffee Paper Cup Making Machine With Handle
-
Suitable Paper Weight180-300g/m2
-
Raw MaterialSingle Or Double Pe Coated Paper
-
Speed50-55pcs/min
-
Control SystemPLC
-
Power Supply380v/220v 50Hz 3PH
-
Power6KW
-
Warranty2 Years
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Free Spare Parts
-
Dimension2250 * 1240 * 1900mm ,2500KG
-
Place of OriginChina
-
Brand NameFect
-
CertificationCE
-
Model NumberPFLB - 120 Fully Automatic Single Pe Coated Coffee Paper Cup Making Machine With Handle
-
Minimum Order Quantity1 Set
-
PriceUSD 14980 -15980 Per Set
-
Packaging DetailsExport-Standard And Sea-Worthy Wooden Case/ Fully Automatic Single Pe Coated Coffee Paper Cup Making Machine With Handle
-
Delivery Time35 Working Days
-
Payment TermsT/T, Western Union, MoneyGram, L/C
-
Supply Ability50 Sets Per Month
Fully Automatic Single PE Coated Paper Cup Maker Machine With Handle
Fully Automatic Single Pe Coated Coffee Paper Cup Making Machine With Handle
Fully Automatic Single Pe Coated Coffee Paper Cup Making Machine With Handle is running by open cam system ,with 2 ultrasonic,one for handle sealing,one for side sealing,and one hot air for bottom knurling,can stable running at 55 pcs/min. It is suitable for single pe and double pe paper,and automaticly for paper feeding,paper cup fomring,handle paper cutting ,handle sealing,accunting,warning.
♦Technical Parameters♦
| Size of cup | 6-12OZ(can be adjusted by mould) |
| The material of paper | 180-300g/m2(single or double pe coated paper) |
| Speed of production | 50-55pcs/min |
| Power supply | 380v/220v 50Hz 3PH |
| Total power | 6kw |
| Weight | 2500kg |
| Overall dimensions | 3000x1200x1580mm(LxWxH) |
♦ Advantages ♦
1.It has the invertor for automatic speed adjusted, and the bottom punching is adopted step motor (when there is paper body, the bottom paper will be send, if not, the bottom paper will not send, this can save the paper, no waste).
2.The inner structure adopts vertical axis to drive the motor. And it is with automatic lubrication system to reduce the friction of each mechanical part, and no need to add the oil by manual.
3.The machine stops automatically if any problem which controlled by sensors we installed, so that the machine is well protected and becomes more durable.
4.We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.
After Sale Service
1) 1 year warranty service.
2) Free replacement of parts within 1 year (free shipping).
3) Parts are provided free of charge within 2 years, but no free shipping.
4) We provide Operation & Maintenance CD.
5) When there is a problem with the machine, please take a video of the problem and send it to us.
6) We will arrange professionals to help you deal with it through video or document tutorials.
♦FAQ♦
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
Our products are sold all over the world, you can rest assured.
