50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min

  • High Light

    50Hz 3PH Paper Cup Making Machines

    ,

    Paper Cup Making Machines 50pcs/Min

    ,

    paper cup high speed machine 55pcs/Min

  • Name
    Automatic High Speed Paper Cup Making Machine With Online Handle Applicator/fixing
  • Suitable Paper Weight
    180-300g/m2
  • Raw Material
    Single Or Double Pe Coated Paper
  • Speed
    50-55pcs/min
  • Control System
    PLC
  • Power Supply
    380v/220v 50Hz 3PH
  • Power
    6KW
  • Warranty
    2 Years
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Free Spare Parts
  • Dimension
    2250 * 1240 * 1900mm ,2500KG
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PFLB - 120 Automatic high speed paper cup making machine with online handle applicator/fixing
  • Minimum Order Quantity
    1 Set
  • Price
    USD 14980 -15980 Per Set
  • Packaging Details
    Export-Standard And Sea-Worthy Wooden Case
  • Delivery Time
    30 Work Day
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    30 Sets Per Month

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min

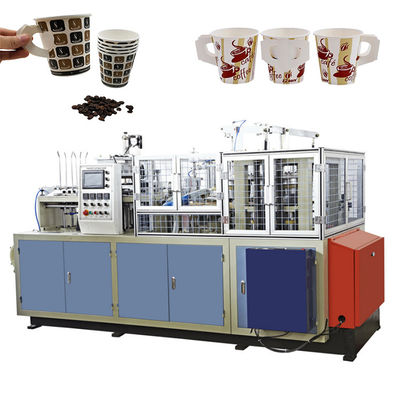

Automatic high speed paper cup making machine with online handle applicator/fixing



Automatic high speed paper cup making machine with online handle applicator/fixing is running by open cam system ,with 2 ultrasonic,one for handle sealing,one for side sealing,and one hot air for bottom knurling,can stable running at 55 pcs/min. It is suitable for single pe and double pe paper,and automaticly for paper feeding,paper cup fomring,handle paper cutting ,handle sealing,accunting,warning.



Technical Parameters

Size of cup 6-12OZ(can be adjusted by mould)
The material of paper 180-300g/m2(single or double pe coated paper)
Speed of production 50-55pcs/min
Power supply 380v/220v 50Hz 3PH
Total power 6kw
Weight 2500kg
Overall dimensions 3000x1200x1580mm(LxWxH)

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min 0

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min 1


♦ Advantages ♦

1. It has the invertor for automatic speed adjusted, and the bottom punching is adopted step motor (when there is paper body, the bottom paper will be send, if not, the bottom paper will not send, this can save the paper, no waste).
2. The inner structure adopts vertical axis to drive the motor. And it is with automatic lubrication system to reduce the friction of each mechanical part, and no need to add the oil by manual.

3. The machine stops automatically if any problem which controlled by sensors we installed, so that the machine is well protected and becomes more durable.

4. We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min 2

50Hz 3PH Automatic High Speed Paper Cup Making Machines 50-55pcs/Min 3

♦About Us♦



Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.


We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



Low price high speed big paper bowl making machine for noodles/salade



♦FAQ♦

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.



Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.



Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
