Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine

Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine

  • High Light

    Ultrasonic Paper Cup Making Machines

    ,

    350g/m2 ripple cup machine

    ,

    350gsm paper cup jacket machine

  • Name
    Fully Automatic Ultrasonic Double And Ripple Wall Paper Cup Sleeve Machine
  • Suitable Paper Weight
    180-350gsm
  • Raw Material
    PE Coated Paper, Water Based Coating,etc
  • Speed
    80-100 Pcs Per Minute
  • Air Requirement
    0.3-0.5m³/min
  • Degree Of Automation
    Fully Automatic
  • Dimension
    2700 X1300 X1800 Mm
  • Weight
    2400kg
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PFS - 16 Fully automatic ultrasonic double and ripple wall paper cup sleeve machine
  • Minimum Order Quantity
    1 Set
  • Price
    USD 18000 To 25000 Per Set
  • Packaging Details
    Export-Standard And Sea-Worthy Wooden Case
  • Delivery Time
    35 Work Day
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    60 Sets Per Month

Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine

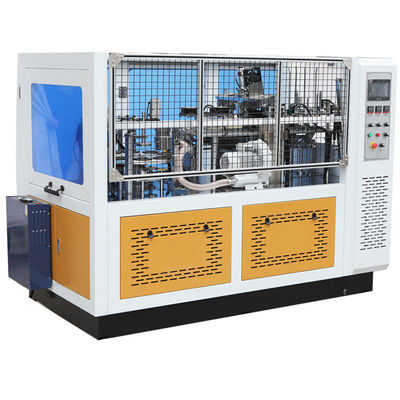

Fully automatic ultrasonic double and ripple wall paper cup sleeve machine

Fully automatic ultrasonic double and ripple wall paper cup sleeve machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It can make the double wall, ripple wall and and hollow cup on the same machine, suitable for making coffee cup, tea cup with two layer

Technical Parameters





Type PFS-16
Cup size: 4-22oz (other customized size)
Production capacity 80-100 pcs/min
Power source: 220V/380V 50HZ(please inform us your power in advance)
Suitable Material: 180-350g/m2 (Single or Double PE-coated paper, PLA cup)
Total Power: 6 KW
Air Requirement 0.5m3/min,0.8MPa ( need to buy an air compressor)
Weight: 2400 KGS
Machine size 2700 x1300 x1800 mm(LxWxH)
H.S code for customs 8441309000


♦ Advantages ♦




1) This machine has the function of photo electric detection, fault alarm and counting.


2) It produces double-wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve cone body sealing (ultrasonic), glue spraying (spay glue one the cone-sleeve), cup feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, auto discharging.


3)It is an ideal equipment of making double walls paper cups (sleeve paper cups),such as directly sleeve paper cups

(rippled/corrugated sleeve).



Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine 0



♦ Details ♦





Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine 1

Ultrasonic Paper Cup Making Machines 350g/M2 Ripple Paper Cup Jacket Machine 2







♦About Us♦



Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.


With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.


We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



Low price high speed big paper bowl making machine for noodles/salade



♦FAQ♦



Q1: Are you trading company or manufacturer  ?



A: We are factory and have export team, welcome to visit our factory, we can pick you up at the airport.



Q2 : Do you have relevant certificate?



A: Yes, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3 : What payment terms are accepted?



A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
