| MOQ: | 1 set |
| Price: | FOB US $27200.00 - 27300.00 / Set |
| Standard Packaging: | Wooden case / Juice High Speed Multi-Cutters Automatic Biodegradable Paper Straw Machine |
| Delivery Period: | within 35 working days after payment confirmed |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 90 sets per month |

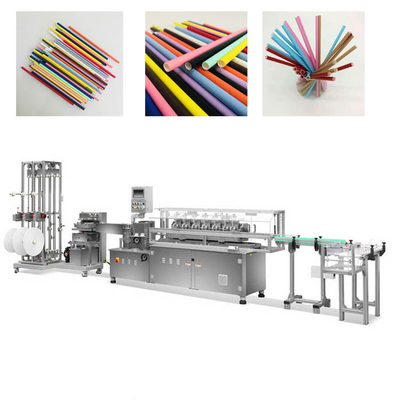

paper straw machine
It adopted with Motion controller, expecially for high speed running of machine; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
We are a professional supplier mainly focused on supply paper straw machines. We supply whole production line which includes printing machine, slitting machine, paper straw making machine and straw packing machine.
Juice High Speed Multi-Cutters Automatic Biodegradable Paper Straw Machine
1. Body structure: Heavy-duty steel welded after NC cutting. Stable ,Strong and small vibration.
3. Glue stand: glue constant temperature control, glue quantity is automatically controlled.
5. Safety as the core design element, transformation part protected , covered with 1.2mm thick stainless steel.
7. High speed: paper feeding speed of 140 m/min, maximum tube exit speed of 100 m/min.
9. Intelligent: centralized monitoring, the monitoring center monitors the running status of all equipment in the workshop in real time. Production data can be introduced into the user's ERP system to facilitate production data collection.
Technical Parameter of paper straw machine
| Surace Layer paper roll thickness 60gsm, middle & inner layer is 120gsm |
| If you need printed paper straw, only need to print the 60gsm thickness paper roll. |
| Paper Roll can be coated with Wax as per your requirements. |
| The proportion of paper roll and glue is 1000kgs paper roll: 150kgs glue. |
| One ton paper roll can do around 850000pcs of paper straw. |
| It is water base glue, must be food grade. |
| Technical Parameter | |
| Paper Layer | 3 layers |
| Inner Diameter | 3.5-12 mm |
| Min. Length | 90 mm |
| Wall Thickness | 0.5-1.5 |
| Speed | Up to 100 m/min. |
| Rewinding Noses | Two noses/single belt |
| Cutting method | Pneumatic blades |
| Gluing way | Single/Double face or no glue |
| Length fixation | Encoder |
| Way of shaft fixing | Pushing |
| Speed control | Servo |
| Operator | 1 person |
| Power input | 3*380V |
| Measurement & Weight | |
| Main machine size | 3511*1265*1800mm |
| Area space | 5000*5000mm |
| Wheel hub diameter | 215 mm |
| Wheel hub height | 125 mm |
| Min. tread | 320 mm |
| Max. tread | 500 mm |
| Weight | 1700kgs |
| Drive system | |
| Main power | 3.0 kw |
| Max. Rotate speed of wheel hub | 200 r/min |
| Output torque | 68 N.m |
| Drive of wheel hub | 2 wheel drive |
| Bearing | NSK |
| Control system | |
| PLC Controller | Delta |
| Man-machine interface | Weinview |
| Servo system | Delta |
| Actuator | Schneider |
| Signal components | Omron |
| Pneumatic component | Airtac |
| Synchronism control | Servo Flying Cutting system |
| Synchronous tracking cutting system | Electronic cam flying shear servo system |
| Outfit assembly | |
| Tube holder | Standard |
| Belt angle adjusting | Hand wheel adjustment |
| Belt tension adjusting | Hand wheel adjustment |
| Stop when paper break | Standard |
| Auto glue feeding | Diaphragm pump |
| Lubrication | Electric roller |
| Paper tension control | Constant tension control |
| Paper reel stand type | Automatic paper receiving |
| Belt | Film baseband |
| Enclosed component | |
| Mandrel | 3 pcs |
| Belt | 5 pcs |
| Tools | 1 set |
| Air compressor | optional |
| Automatic cutter adjustment device | optional |
FAQ of paper straw machine
Q1. How to start an order with us ?
A: 1. Inquiry -Email Wechat/whatapp 24 hours available for have your requirements
2. Solution offer - Best quotation based on your production capacity ,invest plan ,budget ect.
3. Customized -High-end customized according your local market requirement.
4. Preparation before placing order -Share us your factory layout ,we will design it the machine space ,air ,power ,electric accordingly ,invite you come to visit our machinery factory or our model customer’s factory to understand details .
5. Confirm the order -With the advanced payment for starting machine prodcution .
Q2. 2.How to check the quality of the machine you ordered and the guarantee ?
A: The machine will provide a machine inspection report before leaving the factory, and will make samples to test the quality of the machine.
Q3.How to build a long-term partnership between us ?
A: 1.Feedback - Your sincere feedback is the most effective reference for the continuous improvement of our service Deep cooperation
2.Deep cooperation :We provide a complete set of raw materials matching with the equipment with our experience to save your time and cost .
