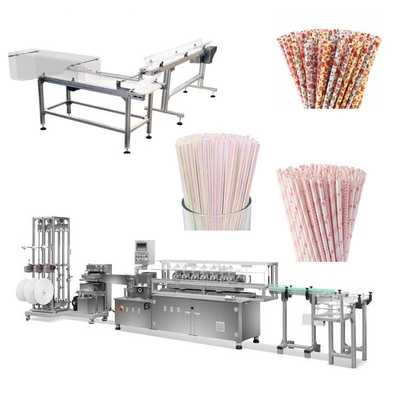

Fast Speed Natural CNC Straight Paper Straw Machines 100m/Min

Fast Speed Natural CNC Straight Paper Straw Machines 100m/Min

  • High Light

    CNC Straight Paper Straw Machines

    ,

    Paper Straw Machines 100m/Min

    ,

    3.0kw paper straws making machine

  • Product Name
    Recycling Fast Speed Natural CNC Drinking Straight Paper Straw Machine
  • Paper Layer
    3 Layers
  • Paper Straw Inner Diameter
    3.5-12 Mm
  • Minimum Length
    90 Mm
  • Wall Thickness
    0.5-1.5 MM
  • Machine Speed
    Up To 100 M / Min
  • Rewinding Noses
    Two Noses / Single Belt
  • Cutting Method
    Pneumatic Blades
  • Gluing Way
    Single/Double Face Or No Glue
  • Length Fixation
    Encoder
  • Machine Speed Control
    Servo
  • Machine Operator Person
    1 Person
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PF-80 paper straw machine
  • Minimum Order Quantity
    1 set
  • Price
    FOB US $27200.00 - 27300.00 / Set
  • Packaging Details
    Wooden case / Delta PLC Controller Commercial Business Use Environmental Paper Straw Machine
  • Delivery Time
    within 35 working days after payment confirmed
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    90 sets per month

Fast Speed Natural CNC Straight Paper Straw Machines 100m/Min

Recycling Fast Speed Natural CNC Drinking Straight Paper Straw Machine



paper straw machine



The high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole, and is equipped with a CNC multi-knife cutting system. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection.



PLC Tough Screen Multi Knives 8 Cutting Knifes Paper Straw Machine



1. Auto feeding function glue station, Glue station heating and recycle function.auto spray glue system

2. Simple appearance, all motors put inside, make it easy for cleaning.

3. Stable, simple transformation principle, maintaining-free design, reduce maintaining frequency during operation.

4. Networking:m product collection industrial 485 bus, industrial Ethernet bus, wireless wifi network, 4G network: decentralized control system.

5. Use intelligent equipment to monitor the running state of the machine in real time. In case of equipment failure, the manufacturer's engineer is automatically notified, and the engineer performs remote diagnosis and repair.



Technical Parameter of paper straw machine



Surace Layer paper roll thickness 60gsm, middle & inner layer is 120gsm
If you need printed paper straw, only need to print the 60gsm thickness paper roll.
Paper Roll can be coated with Wax as per your requirements.
The proportion of paper roll and glue is 1000kgs paper roll: 150kgs glue.
One ton paper roll can do around 850000pcs of paper straw.
It is water base glue, must be food grade.
Technical Parameter
Paper Layer 3 layers
Inner Diameter 3.5-12 mm
Min. Length 90 mm
Wall Thickness 0.5-1.5
Speed Up to 100 m/min.
Rewinding Noses Two noses/single belt
Cutting method Pneumatic blades
Gluing way Single/Double face or no glue
Length fixation Encoder
Way of shaft fixing Pushing
Speed control Servo
Operator 1 person
Power input 3*380V
Measurement & Weight
Main machine size 3511*1265*1800mm
Area space 5000*5000mm
Wheel hub diameter 215 mm
Wheel hub height 125 mm
Min. tread 320 mm
Max. tread 500 mm
Weight 1700kgs



Drive system
Main power 3.0 kw
Max. Rotate speed of wheel hub 200 r/min
Output torque 68 N.m
Drive of wheel hub 2 wheel drive
Bearing NSK



Control system
PLC Controller Delta
Man-machine interface Weinview
Servo system Delta
Actuator Schneider
Signal components Omron
Pneumatic component Airtac
Synchronism control Servo Flying Cutting system
Synchronous tracking cutting system Electronic cam flying shear servo system



Outfit assembly
Tube holder Standard
Belt angle adjusting Hand wheel adjustment
Belt tension adjusting Hand wheel adjustment
Stop when paper break Standard
Auto glue feeding Diaphragm pump
Lubrication Electric roller
Paper tension control Constant tension control
Paper reel stand type Automatic paper receiving
Belt Film baseband



Enclosed component
Mandrel 3 pcs
Belt 5 pcs
Tools 1 set
Air compressor optional
Automatic cutter adjustment device optional
