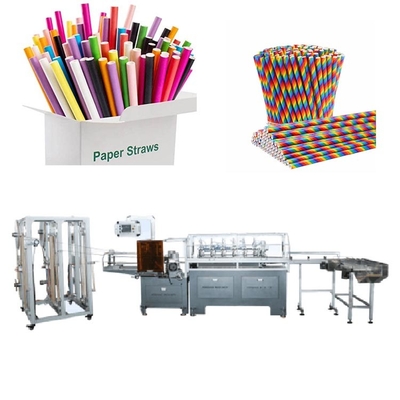

paper straw machine
This Machine is suitable for producing different sizes of paper straws and very small paper tubes. It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Eco-Friendly Custom Disposable Straight No Glue Paper Straw Machine
1. Adapted to PLC and human-machine interface, the paper straw machine is super easy to operate.
2. 2. Adopting high quality electrical parts from world famous brands. The straw machine has a long service life.
3. With stainless steel body and protective cover. Finished paper straws are clean and safe.
4. Equipped with infrared dryer to improve the dryness and hardness of the paper straws.
5. The multi-blade cutting system ensures high productivity. It is easy to adjust the cutting distance with these gas cylinders.
6. There are several sets of servo motors to regulate the speed of the paper feed, the straw mould and the rollers. As a result, the straw machine can work stably and accurately at high speeds.
Technical parameters of paper straw machine
Raw Material | Pure Wood Pulp Paper |
Paper Layers | 3 layers |
Paper Thickness(from inside to outside) | 120g/m²,120g/m²,60g/m² |
Tube Thickness | 0.3-2mm |
Running Speed | 35-50meters/min |
Tube Size | 4.5-12mm |
Cutting System | servo motors,6 set knives |
Cutting Length | 70-1050mm |
Power Source | 380V 50Hz |
Operation Person | 1-2person |
Dimensions | |
Paper Roll Bracket | 1600*2000*1100mm |
Main Part | 2000*1700*900mm |
Collection Part | 1900*2000*1600mm |
Weight | 1400kg |
Main Motor | Sinee(2.2kw) |
Inverter | Sinee(5.5kw) |
PLC | Sinee |
Touch Panel | Sinee |
Servo Motor | Sinee |
Bearing | HRB |
Electronic components | Omron |
Pneumatic parts | Airtag |
After Service:
1 The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect performace!
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
5. We supply the consumable spare parts for free.
