♦Components brand♦
| Motor | Main motor | JINGGUANG(CHINA) |
| Knurling motor |
SHANGHAI DEDONG(CHINA) |
|
| educer | HANTIAN(CHINA) | |
| gear box | LI ZHONG(CHINA) | |
| Electric elements | Frequency converter | EURO (CHINA) |
| All other electrical parts | CHNT(CHINA) | |
|
Ultrasonic
|
KEJIAN(CHINA) / Ever Green(TAIWAN.CHINA) |
|
| sensors | (CHINA) | |
| Pneumatic | cylinder |
MINGMAN SHAKO (TAIWAN) |
| Bearing | other bearings | (CHINA) |
♦Technical Specification♦

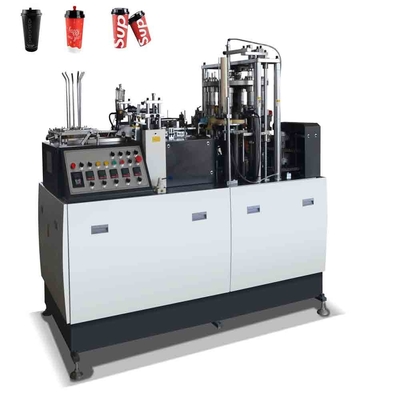

| Type | PFD-9 |
| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
High-Quality
We elaborate every product to provide customers with the best service.
Rich Experience
We have rich experience to provide customers with the best products and services.
Professional Team
We have a professional team which can well feed customers to solver problems and provide better services.
OEM&ODM
We can provide customized services for our customers, and provide high-quality products for them
♦Product Details ♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup
Photo eye detection
The encoder and Photo eye detection control machine at the same time, one fan with one cup bottom to avoid paper waste. Failure alarm, automatic shutdown
automatic oil lubrication
The machine automatically lubricates and lubricates each place that needs lubrication through copper pipes, saving labor
Sheave drive
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. This machine use direct bottom punching method to avoid the bottom turning.
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Our products are sold all over the world, you can rest assured.
