Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines

Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines

  • Name
    Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines
  • Speed
    70-90 Pcs/min
  • Cup Bottom Diameter
    35-70mm
  • Cup Up Diameter
    46-100mm
  • Paper Cup Height
    32-135mm
  • Material
    Single Or Double Pe Coated Paper
  • Power
    4KW 380V/220V
  • After-sales
    Video Technical Support, Online Support, Spare Parts
  • Place of Origin
    Henan, China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PFD-16 Paper Cup Making Machines
  • Minimum Order Quantity
    1 set
  • Price
    USD 13200- USD14000 / set
  • Packaging Details
    wooden case/ Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines
  • Delivery Time
    35 days after receiving payment
  • Payment Terms
    T/T, Western Union, L/C, , MoneyGram
  • Supply Ability
    300Sets per Month Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines

Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines

Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines​ ​

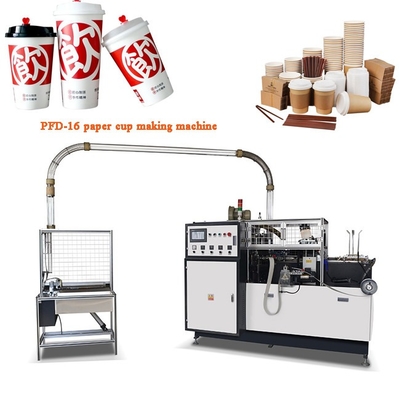

Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines is a multi station automatic molding machine, the automatic paper feeding, sealing (bonded glass), oil filling, filling, bottom heating, knurling, crimping and continuous process of photoelectric detection and fault alarm, counting function, is the ideal equipment for tasting drink cup, tea cup, coffee cup, advertising cup, ice cream cups or other food containers for the production of paper cone.


Machine is suitable make 3-16 oz cups by changing mold, controlled by PLC system, which is more efficiently and less maintence.


Technical Parameters



Type

PFD-16 Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines

Cup size:

3-16 oz  (other customized size)

Production capacity

70-90 pcs/minutes

Power source:

380V 50HZ( or customized )

Suitable Material:

180-350g/m2 (single or double-coated paper)

Air source

0.4-0.5 Mpa

Total Power:

4 KW

Package size:

2.25*1.45*1.95 m, 2500KG

Packaging of cup collection

1100*1000*1000 70kg

H.S code for customs:

8441309000

 Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines 0


A: top diameter:
Min 46mm---Max 100mm
B: bottom diameter
Min 35mm---Max 70mm
C: total height
Min 32mm---Max 135mm

Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines 1Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines 2Doubel Pe Coate Blank Or Printed 85 Pcs Coffee Tea Paper Cup Making Machines 3

Feature



1. the machine is advanced automatic oil lubrication,just need put oil inside then ok,no need add oil by hand
2. the machine paper feeding part,this machine paper side sealing by ultrasonic,and at delivery part,we will insert one rubber tube,can make the paper position fixed.
3.the machine use latest advanced single plate design,fast and more accuracy
4. the machine bottom cutting part,also is the latest advanced design


Company Information



Zhengzhou Perfect Co., Ltd. specialize in producing paper cup machine, high cup machine, paper bowl machine, paper box machine, dining box machine and other paper packaging equipments. Our company integrates research and development, production, sales and maintenance, constantly introducing new and high technology, focusing on after-sales service.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



FAQ


Q1: Delivery of  Automatic Disposable Pe Coated Coffee Paper Cup Machine?

A: Within 35 days after payment confirmed.

Q2 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q1: Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
