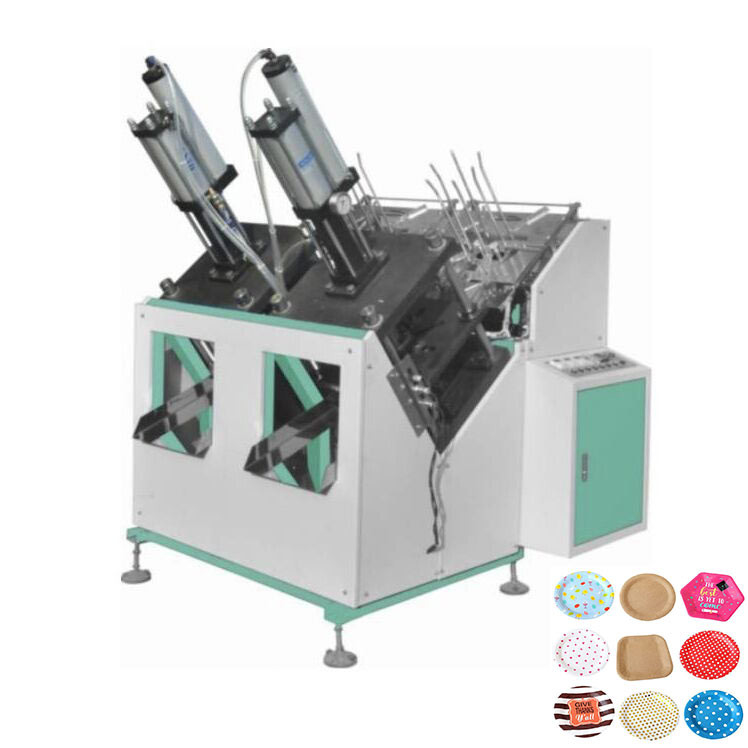

Disposable Easily Operated 50-70Pcs/min Automatic Paper Plate Forming Machine
♦ Description ♦
PF-400 Full Automatic Medium-Speed Paper Plate Forming Machine is developed and designed according to market demands. PF-400 reassembles the principle of combination of pneumatic and mechanical. Compared with the traditional automatic paper plate machine, PF-400 has higher dish ejecting rate ,and is easier to operate and maintain.
♦ Advantages ♦
Adopts high efficient pressurizing air cylinder, the maximum pressure can reach 5T, which compared with the oil pressure cylinder has faster and more environmental friendly advantages.
widely used in productions which use original papers or aluminum foils as raw materials. Different specifications can be produced by changing the mould, round or square plates, etc.
♦ Configuration ♦
| NO. | PART NAME | SUPPLIER |
| 1 | Relay | Schneider |
| 3 | Temperature Controller | Shanghai Yatai |
| 4 | Time Relay | Omron, Japan |
| 5 | Counter | Shanghai Yatai |
| 6 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
| 8 | Counter Switch | Shanghai Yijia |
| 9 | Normally Open Photoelectric | Japan, Omron |
| 10 | Solenoid Valve | Taiwan Airtac |
| 11 | Bearing | Harbin |
| 12 | Temperature Sensor | WHENZHOU CHIN GROUP |
| 13 | Normally Closed Photoelectric | Omron, Japan |
| 14 | AC Contactor | Chint |
| 15 | Thermal Relay | Chint |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
| Model | PF-400 |
| Diameter of Paper Dish | 4-11inch (mould replacement) |
| Capacity | 50-70Pcs/min |
| Power Source | 220V 50HZ |
| Total Power | 3KW |
| weight | 500Kg |
| Dimension | (L*W*H)1300*1400*1600mm |
| Raw Material |
100-800g/m2(original paper, white paperboard, white cardboard, aluminum foil or others) |
| Air Source | Working pressure0.8Mpa Working air volume 1.5m3/min |
| Main technical parameters of cylinder |
mpt-80-150-5t-15 Air cylinder stroke: 150mm |
♦ FAQ ♦
1. Q:Are your company a manufacturer or trading company?
A:We are professional manufacturer of paper food packing machine with more than ten years machinery experience in China.
2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about three and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.
3. Q:How can I get the samples?
A:We can supply some free samples. Besides, the express charges will be paid in your side.
4. Q:Before inquiry, what information should I provide?
A: 1.Paper plate size, such as diameter, depth, length, width etc.
2.Paper GSM, so that I can recommend our machine to you better. PS: After forming, the size will reduce a little bit
Our products are sold all over the world, you can rest assured.
