Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min

Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min

  • High Light

    Hydraulic Paper Plate Making Machines

    ,

    duplex board paper plate making machine

    ,

    fully automatic paper plate making machine

  • Name
    Full Automatic Hydraulic Disposable Duplex Board Plate Making Machine
  • Diameter Of Paper Dish
    4-15 Inch (mould Replacement)
  • Capacity
    80-120Pcs/min(double Stations)
  • Raw Material
    140-1000g/m2
  • Suitable Material
    Original Paper, White Paperboard, White Cardboard, Aluminum Foil Or Others
  • Weight
    1500Kg
  • Dimension
    3800*1200*1880mm
  • Air Source
    Working Pressure04Mpa Working Air Volume 0.3m3/min
  • Place of Origin
    China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    PF-600Y
  • Minimum Order Quantity
    1 Set
  • Price
    USD 8000 To USD 12000 Per Set
  • Packaging Details
    Export-Standard And Sea-Worthy Wooden Case
  • Delivery Time
    30 Work Day
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets Per Month

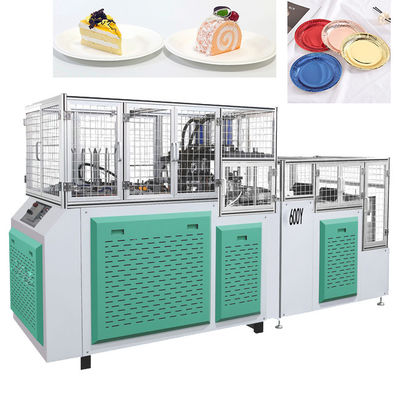

Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min

Full Automatic Hydraulic Disposable Duplex Board Plate Making Machine



Compared with traditional automatic paper plate machine, this machine combines pneumatic principle with hydraulic machine, and has higher production speed, more stable performance, safe operation, more humanized structure design , etc.



And it is widely used in productions which use original papers or aluminum foils as raw materials, suitable for making paper plate, aluminum foil dish and lunch box.







Technical Parameters





Model PF-600Y
Diameter of Paper Dish 4-15 inch (customized)
Capacity 90-120 Pcs / min( double stations)
Power Source 380V 50HZ
Total Power 8KW
weight 1500Kg
Dimension (L*W*H)3800*1200*1880mm
Raw Material 140-1000g/m2( white paperboard, white cardboard, aluminum foil or others)

Air Source



Working pressure 0.4 Mpa





♦Features♦



1. Using the fast oil pressure system, each station is 15 - 20 minutes faster than ordinary machine.



2. Paper feeding machine works with stable performance. Compared to the ordinary type of paper cutting technology, rejection rate greatly reduced to 2/10000.



3. More humane, comes with a number of efficient disk machine, automatic number plate stack and other functions, compared to ordinary machines can save one and a half of the manual.



Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min 0



Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min 1Hydraulic Duplex Board Paper Plate Making Machines 80-120 Pcs/Min 2



♦About Us♦



Zhengzhou Perfect Co., Ltd. is a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials’ printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, medicine and other industries.


Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.


We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
