Automatic 180pcs/min Pastry Burger Take Away Food Box Making Machine
♦Technical Specification ♦
|Voltage||220V 50Hz ( at customer requirements)|
|Box Angles||5°- 40°|
|Edge banding height||H 15-200mm|
|Occupancy of machine||1.2m*4m|
|Bonding/Gluing device||Water-based adhesive|
|Paper thickness||Max 1.5mm (120g-450g)|
|Package measurements||3.55m*1.35m*1.7m (L*W*H) (8.76CMB)|
|Compressor (optional)||0.5-0.6Mpa, 1 CBM volume|
♦ Technical Specification ♦
1. Use glue bonding system to produce aluminum foil and double PE coated paper boxes,
one machine can produce various products with less replacing time.
2. Applies PLC system to control and produce complex boxes, and automatically stop
when there is paper jamming or no paper, more safe and convenience for operation.
3. Automatically collecting, stacking and counting.
4. Install additionally counter as the requirements of customers.
(1) Just can change related wooden mold for different box, it need client provide us all of
the samples of box.
(2) Water-based adhesive is belongs to food-grade. It is safe for human body.
(3) All of the molds are made of Pine materials, so that can be more durable.
(4) Automatically collecting. According to clients’ request, we can add calculator for
counting the amount of boxes and set a mark per 100/200 boxes in order to counting easily.
(5) PLC control system, during running period, the machine will stop automatically when
short of paper, become more safety for operator.
1. Paper feeding
The feeding part adopts mechanical rubber-wheel paper feeding structure, which can feeding paper in any size and specification without adjust in addition. The machine adopts chain drive to guarantee smooth running, hard-wearing. the chain drive of
every unit are separated to reduce noise and workload, increase the stability ,The transmission width can be adjusted by the screw rod easily and Conveniently.
Use water-based adhesive coat the roller by foam, and apply on the paper glue position.
3. Forming device and box collector
The mold height is adjustable and can be made into various specifications and shapes, such as the taper box and flapped hamburger box etc. Automatic counter can be set mark 100/200pcs one time for paper box subgroup packing. The size of the box collecting frame can be adjusted by hand wheel simple and convenient. When change the mold the frame can be opened, more convenient to adjust the position of hook.
|Package detail||Export wooden case/Automatic pastry burger take away food box making machine|
|Package size||3.55*1.35*1.7 m|
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Automatic pastry burger take away food box making machine use thermal bonding system to produce various fast food paper box container with high quality and efficiency.
PLC control system can produce various complex boxes, and automatically stop when there is paper jamming or no paper, more safe and convenience for operation.
Automatically collecting, stacking and counting (optional).

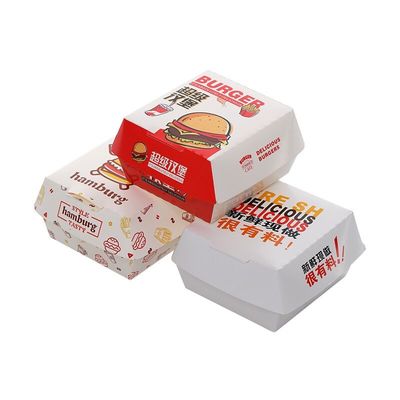

Automatic pastry burger take away food box making machine is a special forming machine that produces various fast food box container, such as, burger box, one block box, food pail box( take away box), hamburger box, French Fries box take out container and other related containers made by aluminum foil paper and double PE coated paper.
