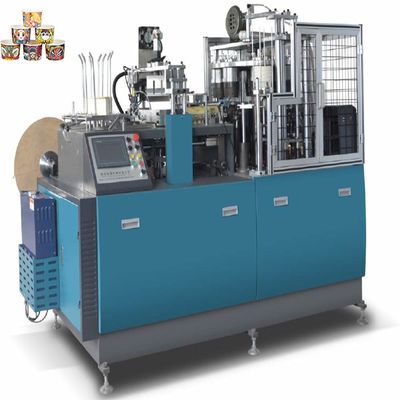

115mm Height Salad Soup Paper Bowl Machine With Ultrasonic System

115mm Height Salad Soup Paper Bowl Machine With Ultrasonic System

  • High Light

    Salad Soup Paper Bowl Machine

    ,

    115mm Height Paper Bowl Machine

    ,

    380V Disposable Bowl Making Machine

  • Name
    PF-BOWL 8-35oz Paper Salad Soup Bowl Making Machine With Ultrasonic Sy
  • Voltage
    380V
  • Application
    Factory Or Shop
  • Warranty Time
    One Year
  • Production Capacity
    60-70 Pcs/min
  • Power Source
    380V 50Hz(please Inform Us Your Power In Advance)
  • Place of Origin
    Ningbo, China
  • Brand Name
    FECT
  • Certification
    CE
  • Model Number
    PF-BOWL
  • Minimum Order Quantity
    1 set
  • Price
    USD$ 16,350/set
  • Packaging Details
    Export-standard and sea-worthy wooden case.
  • Delivery Time
    Within 35 days after deposit received
  • Payment Terms
    30% T/T as deposit in advance, the balance by T/T after production
  • Supply Ability
    35 sets per month High Speed Fully Automatic Paper Bowl Forming Machine

115mm Height Salad Soup Paper Bowl Machine With Ultrasonic System

PF-BOWL 8-35oz Paper Salad Soup Bowl Making Machine with Ultrasonic System



Packaging:

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.



Application of 70pcs speed paper bowl making machine

PF-W35 70pcs speed paper bowl making machine is a multi-station automatic forming machine which adopts automatic paper feeding, sealing (bonding wall), oil filling, bottoming, heating, knurling and crimping. Such continuous processes as well as photoelectric detection, fault alarm, counting and other functions are an ideal equipment for producing large-capacity calibers or food containers such as paper soup bowls, instant noodle bowls, convenient noodle bowl, breakfast bowl, and other paper food container bowls.

PF-W35 70pcs speed craft paper bowl maker machine paper bowl making machine, mainly used to produce single-sided/double-side PE coated paper bowls (from 8 oz to 35 oz, or other customized sizes).



Features of 70pcs speed paper bowl making machine


• inclined frame, paper bowl dropping rate 99.99%
• mould plate, nylon wheel, chassis are all made by aluminum, it is light, good anti turntable inertia with long life and more durable than other iron machine
• Full automatic, Easy changing molds produce different sizes paper bowls
• Easy operating, save labor cost (one operator is enough)
• Cheap operating cost and low investment



Detail

Repeatedly loose paper

Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup.

Photoelectric Sensor Detection

The encoder and the Photoelectric Sensor control the machine at the same time, a fan-shaped plate with a cup bottom to avoid paper waste. Failure alarm, automatic shutdown.

PLC control

The machine is more intelligent, the control is more precise, and the labor is greatly reduced.

Multiple cooling fans

Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature.

Multiple cooling fans

Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature

Automatic oil lubrication system

The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor



Technical Specification



Type PF-BOWL
Bowl size: 8-35oz (other customized size)
Max. paper bowl up diameter 150 mm
Max. Paper bowl bottom diameter 125 mm
Max. Paper Bowl height 115 mm
Production capacity 60-70 pcs/min
Power source: 380V 50Hz(please inform us your power in advance)
Suitable Material: 140-350g/m2
Total Power: 4.8 KW
Weight: 1980KG
Machine size 2350-1250-1900 mm
Air pressure 0.6Mpa, 0.6 m3/minute


FAQ

1.Q: What is the power supply of the machine?

A: The standard power supply in china is 380V, 50Hz. We also can customized accordingly.



2.Q:What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures,industrial voltage, planned output, etc



3. Q: What is the payment term?
A: 30% T/T as deposit in advance, the balance by T/T after production



4.Q: What is the delivery time?
A: Within 35 days after deposit received



5. Q:What is the quality guarantee of the machine?
A: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
