Introduction of noodle aluminum foil container kraft paper soup bowl making machine
It makes paper bowls after running a whole procedure of automatic pre-printed bowl-fan-paper feeding, bowl-side-body welding(heater or ultrasonic), silicone-oil lubricating(for top curling, Dimethyl silicone oil 201, Food Grade), roll bottom auto feeding and bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling, bowl discharging, collection.
♦Technical Specification ♦ of noodle aluminum foil container kraft paper soup bowl making machine

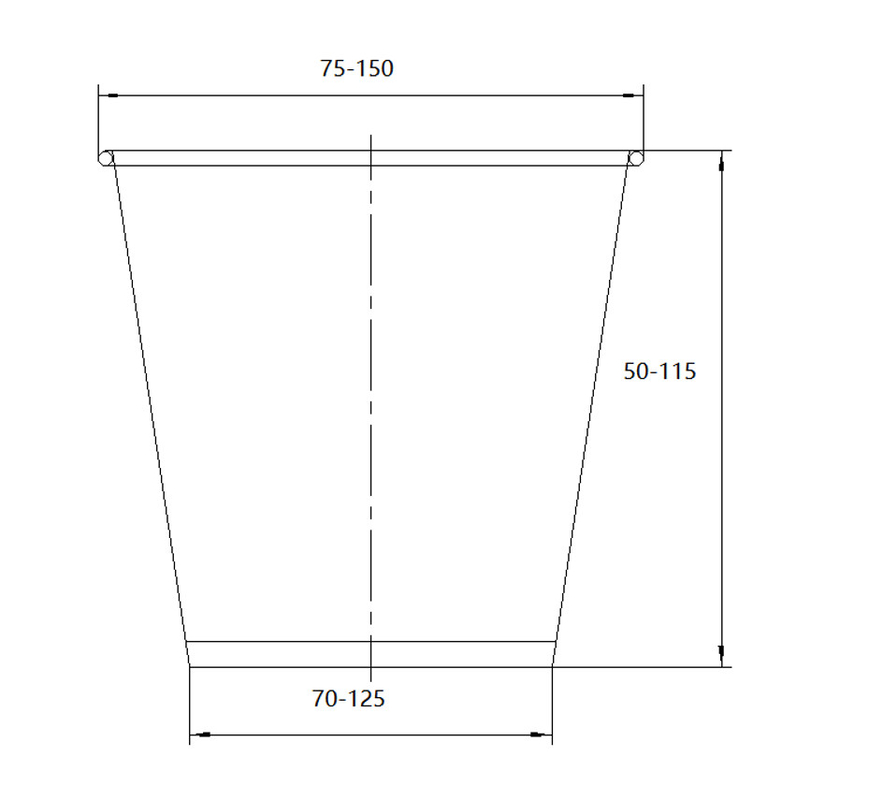

|Bowl size:||8-35oz (other customized size)|
|Max. paper bowl up diameter||150 mm|
|Max. Paper bowl bottom diameter||125 mm|
|Max. Paper Bowl height||115 mm|
|Production capacity||60-70 pcs/min|
|Power source:||380V 50Hz(please inform us your power in advance)|
|Total Power:||4.8 KW|
|Machine size||2350-1250-1900 mm|
|Air pressure||0.6Mpa, 0.6 m3/minute|
♦Details ♦ of noodle aluminum foil container kraft paper soup bowl making machine
PLC touch screen, easy operation
This paper bowl-making machine adopts a full-body square steel structure, which is not more compact and stable under the condition of high-speed operation.
The spray lubrication system is used to reduce wear and dissipate heat effectively so that the machine has a longer life and more stable operation.
fully automatic closed lubrication system, without the need for manual oil lubrication, can ensure that the machine runs for a long time without interruption at high speed.
Parts and components are produced in a standardized manner with strong versatility and good interdependence performance, which is convenient for equipment maintenance.
♦Mechanical quality assurance ♦ of noodle aluminum foil container kraft paper soup bowl making machine
1. All moving parts on the table are easily accessible, which is convenient for daily cleaning and maintenance.
2. All the moving parts under the countertop are shower-type lubricated and replaced with the specified lubricating oil every 4 to 6 months.
