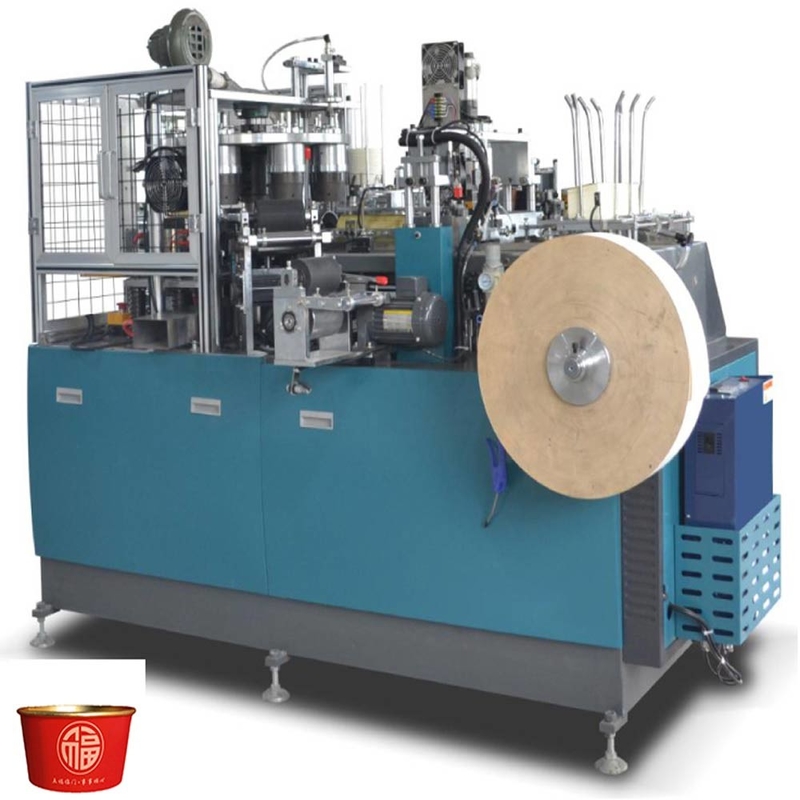

60-70 pcs/min Factory High Speed 8-35oz Paper Bowl Making Machine
Package detail |
Export-standard and sea-worthy wooden case.
|
Machine size | 2350-1250-1900 mm |
Weight |
1980KG |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
♦Detail♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup.
Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the same time, a fan-shaped plate with a cup bottom to avoid paper waste. Failure alarm, automatic shutdown.
PLC control
The machine is more intelligent, the control is more precise, and the labor is greatly reduced.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor
Waste paper transportation
Guided by the conveyor belt, the waste paper is discharged. Prevent waste paper from being transferred into the machine when the machine is operating, it is not easy to clean up, and affect the work of the machine
Sheave drive
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step.
♦Technical Specification♦
Type | PF-BOWL |
Bowl size: | 8-35oz (other customized size) |
Max. paper bowl up diameter | 150 mm |
Max. Paper bowl bottom diameter | 125 mm |
Max. Paper Bowl height | 115 mm |
Production capacity | 60-70 pcs/min |
Power source: | 380V 50Hz(please inform us your power in advance) |
Suitable Material: | 140-350g/m2 |
Total Power: | 4.8 KW |
Weight: | 1980KG |
Machine size | 2350-1250-1900 mm |
Air pressure | 0.6Mpa, 0.6 m3/minute |
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
