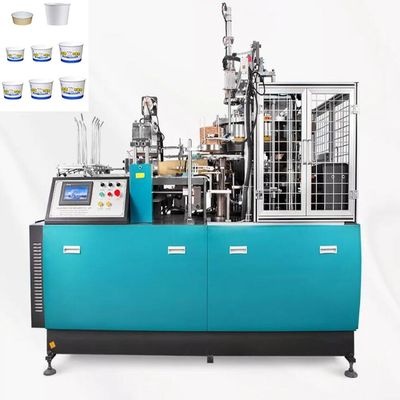

8-35oz 4.8 KW PF-BOWL High Speed Paper Soup Ice-cream Bowl Making Machine
Quality Guarantee: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
Installation and Debugging: we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 100 USD /day).
Application of 70pcs speed paper bowl making machine
PF-W35 70pcs speed paper bowl making machine is a multi-station automatic forming machine which adopts automatic paper feeding, sealing (bonding wall), oil filling, bottoming, heating, knurling and crimping. Such continuous processes as well as photoelectric detection, fault alarm, counting and other functions are an ideal equipment for producing large-capacity calibers or food containers such as paper soup bowls, instant noodle bowls, convenient noodle bowl, breakfast bowl, and other paper food container bowls.
PF-W35 70pcs speed craft paper bowl maker machine paper bowl making machine, mainly used to produce single-sided/double-side PE coated paper bowls (from 8 oz to 35 oz, or other customized sizes).
Features of 70pcs speed paper bowl making machine
• inclined frame, paper bowl dropping rate 99.99%
• mould plate, nylon wheel, chassis are all made by aluminum, it is light, good anti turntable inertia with long life and more durable than other iron machine
• Full automatic, Easy changing molds produce different sizes paper bowls
• Easy operating, save labor cost (one operator is enough)
• Cheap operating cost and low investment
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup.
Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the same time, a fan-shaped plate with a cup bottom to avoid paper waste. Failure alarm, automatic shutdown.
The machine is more intelligent, the control is more precise, and the labor is greatly reduced.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor
Waste paper transportation
Guided by the conveyor belt, the waste paper is discharged. Prevent waste paper from being transferred into the machine when the machine is operating, it is not easy to clean up, and affect the work of the machine
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step.
|Bowl size:||8-35oz (other customized size)|
|Max. paper bowl up diameter||150 mm|
|Max. Paper bowl bottom diameter||125 mm|
|Max. Paper Bowl height||115 mm|
|Production capacity||60-70 pcs/min|
|Power source:||380V 50Hz(please inform us your power in advance)|
|Total Power:||4.8 KW|
|Machine size||2350-1250-1900 mm|
|Air pressure||0.6Mpa, 0.6 m3/minute|
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
If you have any question, you can consult us. We will help you solve it.
If you prepare to place a big order, We will give you a favorite price.
