4.8 KW 8-35oz Salad Soup Bowl Kraft Paper Bowl Machine Making
Installation and Debugging: we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 100 USD /day).
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor
Waste paper transportation
Guided by the conveyor belt, the waste paper is discharged. Prevent waste paper from being transferred into the machine when the machine is operating, it is not easy to clean up, and affect the work of the machine
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step.

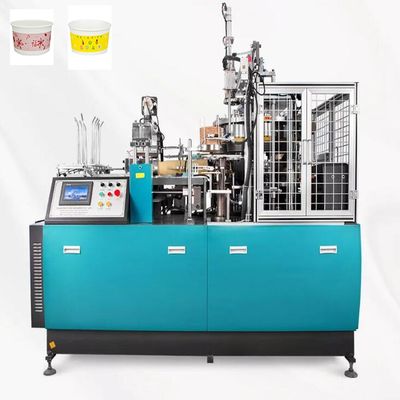

Application of 70pcs speed paper bowl making machine
PF-W35 70pcs speed paper bowl making machine is a multi-station automatic forming machine which adopts automatic paper feeding, sealing (bonding wall), oil filling, bottoming, heating, knurling and crimping. Such continuous processes as well as photoelectric detection, fault alarm, counting and other functions are an ideal equipment for producing large-capacity calibers or food containers such as paper soup bowls, instant noodle bowls, convenient noodle bowl, breakfast bowl, and other paper food container bowls.
PF-W35 70pcs speed craft paper bowl maker machine paper bowl making machine, mainly used to produce single-sided/double-side PE coated paper bowls (from 8 oz to 35 oz, or other customized sizes).
♦ Advantage ♦
1. PF-BOWL intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality; The integral steel body and the oil-drenching lubrication system ensure the normal and stable operation of the equipment for a long time;
2. The advanced high-precision cam drive and gear drive make each station accurate and accurate; Servo tracking paper feeding locks the size of the bottom paper of the cup, effectively saving raw materials;
3. The man-machine interface PLC system controls the long-term stable operation of the whole machine.
|Bowl size:||8-35oz (other customized size)|
|Max. paper bowl up diameter||150 mm|
|Max. Paper bowl bottom diameter||125 mm|
|Max. Paper Bowl height||115 mm|
|Production capacity||60-70 pcs/min|
|Power source:||380V 50Hz(please inform us your power in advance)|
|Total Power:||4.8 KW|
|Machine size||2350-1250-1900 mm|
|Air pressure||0.6Mpa, 0.6 m3/minute|
1.Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 50Hz. We also can customized accordingly.
2.Q:What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures,industrial voltage, planned output, etc
3. Q: What is the payment term?
A: 30% T/T as deposit in advance, the balance by T/T after production
4.Q: What is the delivery time?
A: Within 35 days after deposit received
5. Q:What is the quality guarantee of the machine?
A: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
