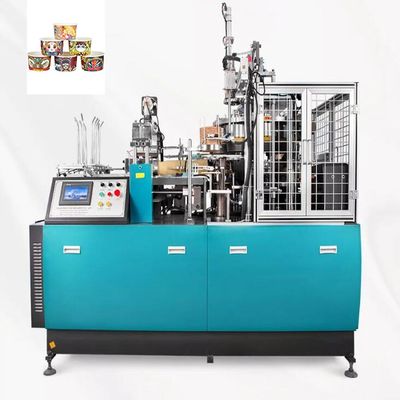

70 Pcs/Min 140-350g/M2 Craft Paper Bowl Making Machine PLC Control
-
High Light
350g/M2 Paper Bowl Making Machine
,140g/M2 Paper Bowl Making Machine
,70Pcs/Min paper bowl machine
-
Name70pcs Speed Craft Paper Bowl Maker Machine Paper Bowl Making Machine
-
Bowl Size8-35oz (other Customized Size)
-
Production Capacity60-70 Pcs/min
-
Power Source380V 50Hz（please Inform Us Your Power In Advance）
-
Suitable Material140-350g/m2
-
Total Power4.8 KW
-
Place of OriginNingbo, China
-
Brand NameFECT
-
CertificationCE
-
Model NumberPF-BOWL
-
Minimum Order Quantity1 set
-
PriceUSD$ 16,350/ set
-
Packaging DetailsExport-standard and sea-worthy wooden case.
-
Delivery Time3)Within 35 days after deposit received
-
Payment Terms30% T/T as deposit in advance, the balance by T/T after production
-
Supply Ability35 sets per month High Speed Fully Automatic Paper Bowl Forming Machine
70 Pcs/Min 140-350g/M2 Craft Paper Bowl Making Machine PLC Control
Features of 70pcs speed paper bowl making machine
• inclined frame, paper bowl dropping rate 99.99%
• mould plate, nylon wheel, chassis are all made by aluminum, it is light, good anti turntable inertia with long life and more durable than other iron machine
• Full automatic, Easy changing molds produce different sizes paper bowls
• Easy operating, save labor cost (one operator is enough)
• Cheap operating cost and low investment
♦Detail♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup.
Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the same time, a fan-shaped plate with a cup bottom to avoid paper waste. Failure alarm, automatic shutdown.
PLC control
The machine is more intelligent, the control is more precise, and the labor is greatly reduced.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor
Waste paper transportation
Guided by the conveyor belt, the waste paper is discharged. Prevent waste paper from being transferred into the machine when the machine is operating, it is not easy to clean up, and affect the work of the machine
Sheave drive
The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step.
♦Technical Specification♦
| Type | PF-BOWL |
| Bowl size: | 8-35oz (other customized size) |
| Max. paper bowl up diameter | 150 mm |
| Max. Paper bowl bottom diameter | 125 mm |
| Max. Paper Bowl height | 115 mm |
| Production capacity | 60-70 pcs/min |
| Power source: | 380V 50Hz(please inform us your power in advance) |
| Suitable Material: | 140-350g/m2 |
| Total Power: | 4.8 KW |
| Weight: | 1980KG |
| Machine size | 2350-1250-1900 mm |
| Air pressure | 0.6Mpa, 0.6 m3/minute |
Quality Guarantee: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
Installation and Debugging: we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 100 USD /day).
FAQ
1.Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 50Hz. We also can customized accordingly.
2.Q:What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures,industrial voltage, planned output, etc
3. Q: What is the payment term?
A: 30% T/T as deposit in advance, the balance by T/T after production
4.Q: What is the delivery time?
A: Within 35 days after deposit received
5. Q:What is the quality guarantee of the machine?
A: One year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
Our products are sold all over the world, you can rest assured.
