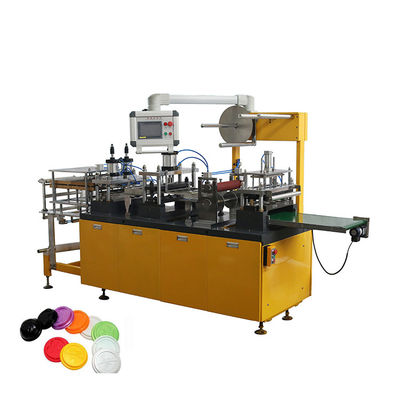

Cup Lid Machine
The automatic paper lid machine uses one-time molding and automatic paper feeding, creasing, embossing,punching, feeding plate to die, heating, fold, knurling, pushing, counting and other series of automatic functions. Model PL-145 Automatic paper lid/cover machine is the ideal equipment which can produce different size lids of paper soup bowl cover,coffee cup lid,ice cream lid.
High Speed Productivity 60-90 Pcs Per Minute Paper Cover Forming Cup Lid Machine
1.The automatic paper lid machine uses one-time molding and automatic paper feeding, creasing, embossing, punching, feeding plate to die, heating, fold, knurling, pushing, counting and other series of automatic functions.
2.It adopts advanced PLC control, which makes the machine higher speed and much more stable.
3. Precise cutting, one-time forming, automatic fault alarm, counting, and paper detection are adopted.
4.The lid made by one disc paper,save cost,paper lid side folded and gentle lock on cup,can block little water out.
5.One person can operate the machine.
6.It can save raw material and theenergy consumption is low.
Technical Parameters Of Cup Lid Machine
| Type | PF-145 |
| Paper lid size | height (8-15)mm, diameter (Φ55-Φ145)mm |
| Production capacity | 60-90 pcs/min |
| Power source: | 220V/380V 50HZ |
| Suitable material: |
250-350g/m2 single and double coated paper, raruish and coated paper |
| Voltage | AC380V/50HZ |
| Power: | 17 KW |
| Air source | Air consumption 0.02m3 / min, working pressure 0.3Mpa |
| Package size: | 2900KG, 6.99CBM (3250*1400*1950m) |
| H.S code for customs | 8441309000 |
After Service:
1. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
2.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
3. We supply the consumable spare parts for free.
FAQ of paper cup die cutting machine
Q1: Is it a trading company or a trading company?
A: We have our own factory and exports, welcome to visit our factory, we can take you to the airport
Q2 : Do you have a related certificate?
Answer: Yes, so far, we have CE, ISO, and more. We can also produce CO, Form E, etc. if you need it.
Q3: Is the machine inspection complete?
A: Yes, we have a QC department, they will check each machine before turning it off and providing test images to make sure there is no problem with the machine.
Q4: What payment methods are valid?
A: TT (Telegraph Transfer), Western Union, MoneyGram, LC, etc.
Q5: When can the machine be shipped after shipment?
Depending on the type and size of the machine, some machines can be shipped within 3 business days after payment, other machines are started to be produced after storage, please call our staff for more information.
Q6: What about warranty and service after sale?
A: Our machines have a two-year warranty and technical assistance in life. Help is always called or emailed, and we can provide a response within 8 hours of the issue being analyzed and reviewed. Remote training and home service is available
Our products are sold all over the world, you can rest assured.
