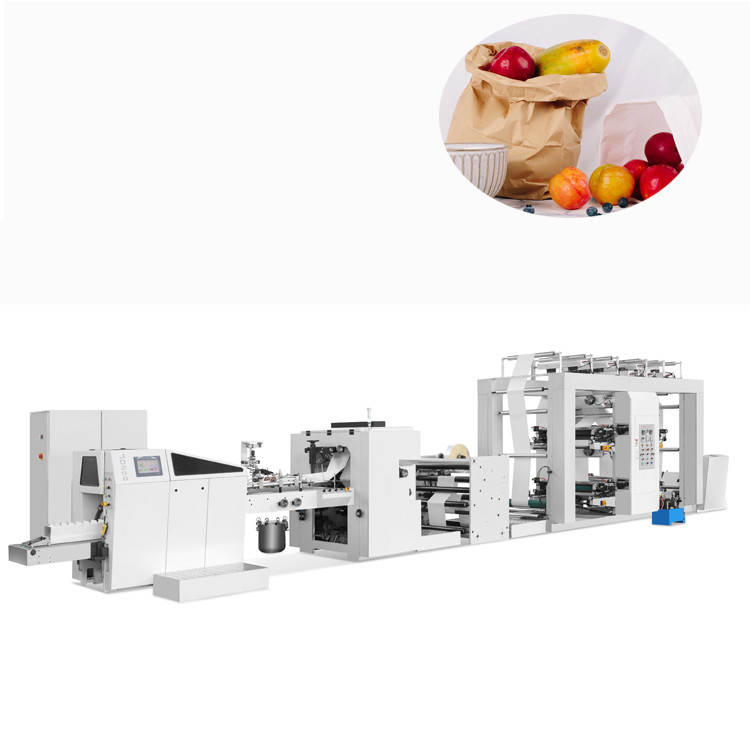

Automatic Roll Feeding 350mm Width Paper Bag Production Line Machine
♦Technical Parameters♦
|
Model |
PF-350J Automatic Roll Feeding 350mm Width Paper Bag Production Line Machine |
|
Machine Speed |
50-610 pcs/min or 120 m/min |
|
Cutting Length(C) |
175-715mm |
|
Bag Length L |
170-710mm |
|
Bag Width W |
70-350mm |
|
Gusset Width G |
20-120mm |
|
Bag Mouth Height H |
15/20mm |
|
Material Thickness |
35-80g/m² |
|
Scroll Width |
100-960mm |
|
Scroll Diameter |
200-1200mm |
|
Scroll Core Diameter |
76mm |
|
Rolling Film Width |
50-200mm |
|
Film Thickness |
0.022-0.035mm (OPP,PET) |
|
Rolling Film Diameter |
500mm |
|
Rolling Film Core Diameter |
76mm |
|
Power Supply |
3 phase 380V 26kw |
|
Air Pressure Supply |
≥0.12m3/min,0.6-1.2MP |
|
Machine Weight |
6700kg |
|
Machine Size |
8800x2300x1900mm |
Automatic Roll Feeding 350mm Width Paper Bag Production Line Machine is three sets Lenz servo motors and servo drivers. Available Germany LENZ Motion Controller( PC), Integrated with optical fiber,ensure the machine with high speed steadily. This machine come with an intelligent counting and marking system,help you out from counting bags one by one, just by setting a number with the interface. The fixed bag will jump high out of the bag line to mark a quantitative stack. It makes product collection easy and accurately. Also save extra labor.
♦Feature♦
1. Available Germany LENZE Human-Computer Touch Screen,It is easy to operate and control.
2. Available Germany LENZE Motion Controller( PC), Integrated with optical fiber,ensure the machine with high speed steadily.
3. Available Germany LENZE Servo Motor Integrated With Germany Original SICK Rectifying Photo Sensor, ensure the printed paper length under tracking precisely.
4. Available material hydraulic loading up and down structure, integrated with constant tension control unwinding system.
5. Available Italy SELECTRA Material edge rectify system, substantially cut off the edge alignment time
♦Details♦
♦Company Information♦
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper bag machine, paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
♦RFQ♦
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished printed handles paper bag making machine paper bags with your own logo printing machine ?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the printed handles paper bag making machine paper bags with your own logo printing machine be shipped after order is placed?
Our products are sold all over the world, you can rest assured.
