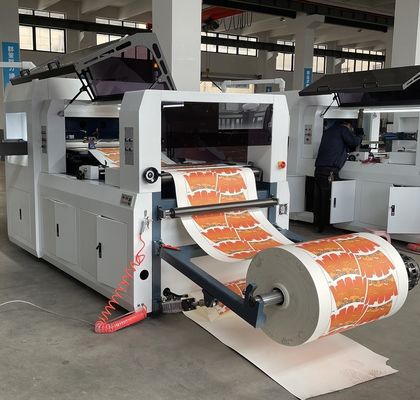

This MQ970 automatic web die-cutting machine based on international advanced technology has high stability, high safety performance, high precision. It is the ideal and professional machine in die-cutting, creasing, embossing, and full-stripping various PE coated paper, normal paper, corrugating paper. it’s widely used in the printing, packaging, and paper products industries, such as the production of paper cups, paper boxes, medical packages, wine packages, food packages, and other environmental protection products.
It adopts a micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection, and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning, and orderly withdrawing.
Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety, and reliability.
Technical parameters of roll to sheet box cardboard creasing paper cup die cutting machine
| Model | MQ970*550 |
| Max cutting area | 950*510mm |
| Cutting precision | ±0.2mm |
| Paper gram weight | 100-500g |
| Production capacity | 90-180times/min |
| Max die cutting speed | 10800pcs/min |
| Max roll feeding width | 970mm |
| Max unwinding diameter | 1600mm |
| Max cutting pressure | 320T |
| Max die cutting width | 950mm |
| Total power | 12KW |
Unwinding Unit
Adopts chain type pneumatic roller unwind, tension controls unwind speed ,and that is hydraulic, it could support at least 1.5T, Max. roll paper diameter is 1.6m.
Collection unit
By the action of the entity induction switch, finished product will be automatically lowered down to remain the height of the pilling paper unchanged, during the whole die-cutting process, manual paper-taking is not needed.
Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is ,it can be flatten or refolded towards other directions.
Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.
Die cutting plate: 65 Mn steel plate heating treatment, high hardness and flatness.
Die cutting knife plate and plate frame can be taken out so that it can save plate-changing time.
Our products are sold all over the world, you can rest assured.
