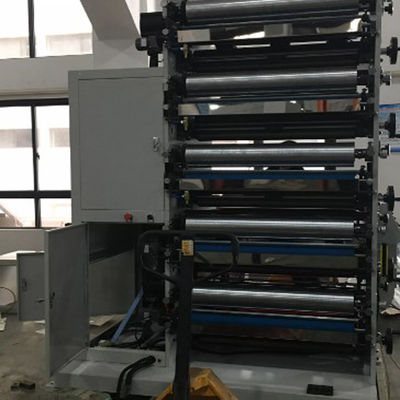

4500X1800X2250mm 4 colors 50m-60m/min Stack Paper Cup Bowl Flexo Printing Machine
If you have any question, you can consult us. We will help you solve it.
If you prepare to place a big order, We will give you a favorite price.
When you purchase machines, high-quality products, good service and favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so chose us.
♦Description♦
1. 4 color paper cup bowl flexo printing machine belongs to flexographic printing machine. The biggest reason why it used for high-grade paper cup printing is its ceramic anilox cylinder, which make printing on paper more precise and finer.
2. It is the ideal choice for factory to print many kinds of paper cup, coffee cup, paper bowl, paper box, etc
3. 4 color paper cup bowl flexo printing machine is very suitable for standardization. Flexo printing machine through the many plates holes in cylinder to convey the ink, once you choose the right roller in the printing process, the color change little, to some extent,can reduce the dependence on operator experience. And through this ink transmission, color is well-distributed.
4. The paper cup and bowl flexography printing machine also can combine with other printing machine like Gravure printing and screen printing machine, for exquisite label printing work.
5. At last, the label printing press is environmental because of its UV ink or Water ink, non-toxic ,colorless and tasteless, accord with sanitary requirement.
About Us
Rich Experience
We have rich experience to provide customers with the best products and services.
Professional Team
We have a professional team which can well feed customers to solver problems and provide better services.
High-Quality
We elaborate every product to provide customers with the best service.
♦Technical parameters♦
Printing speed | 50m-60m/min |
Printing color | 4 colors (1/2/3/4/5/6/7/8 color for option) |
Print max width | 850mm |
Unwind roll width | 860mm |
Unwind roll diameter | 1300mm |
Rewind roll max diameter | 1300mm |
Printing length | 175-370mm |
Registering accuracy | ±0.15mm |
Voltage | 36kw |
Air press | 0.6MP |
Weight | 4500kg |
Dimension | 4500X1800X2250mm |
♦Features♦
1. Adopt high quality ceramic anilox cylinder to transfer the ink.
2. The printing unit can register in 360degress;each printing unit can mesh roller and improve the printing efficiency.
3. Each printing unit equips with IR dryer.
4. Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic inverter motor .
5. Unwinding adopts auto tension controller.
6. Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
7. Equipped with web guide for tracking.
8. The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
9. The main motor is adopted the import stepless, regulation of frequency conversion.
10. The machine can finish material-feeding, printing,rewinding in a lump.It is an ideal machine for printing note and top-grade paper cup.
♦Standard Configuration♦
1) One unwinding tension controller
2) One rewinding tension controller
3) 1 pcsElectromagnetism valve
4) Main Motor
5) Button
6) 2 sets Printing roller
7) 2 sets ceramic anilox roller (made in shanghai)
8) 5 group * 3 sets printing rollers = 15 pcs (buyer offer dimension)
9) Transducer(2 pcs)
10) All low-tension electrical
11) Web guiding for correcting edge
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
