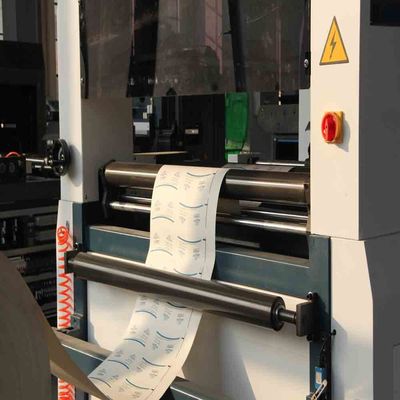

16KW 380V Lunch Box Paper Cup Die Cutting Machine 200 Times Per Min

16KW 380V Lunch Box Paper Cup Die Cutting Machine 200 Times Per Min

  • High Light

    380V Paper Cup Die Cutting Machine

    ,

    MQ970 Paper Cup Die Cutting Machine

    ,

    16KW Lunch Box Die Cutting Machine

  • Name
    MQ970 380V 200 Times/min Cake Carton Lunch Box Die Cutting Machine
  • Machine weight
    3500kg
  • Max Speed
    200 Times/min
  • Power
    16kw 380V 3P
  • Max. Die Cutting Size
    1120*640mm(W*L)
  • Min.  Die Cutting Size
    400*350mm(W*L)
  • Place of Origin
    Ningbo, China
  • Brand Name
    FECT
  • Certification
    CE
  • Model Number
    MQ970
  • Minimum Order Quantity
    1 set
  • Price
    USD$ 46, 619/ set
  • Packaging Details
    Export-standard and sea-worthy wooden case.
  • Delivery Time
    Within 35 days after deposit received
  • Payment Terms
    30% T/T as deposit in advance, the balance by T/T after production
  • Supply Ability
    30 Set/Sets per Month Die Cutting Machine

16KW 380V Lunch Box Paper Cup Die Cutting Machine 200 Times Per Min

MQ970 380V 200 times/min Cake Carton Lunch Box Die Cutting Machine



We have won the trust and support from customs home and abroad. In order to provide better products and service, our company emphasis on the recruit of the international top-notch talents and has abundant technical power. It is well-worth mentioning that we always follow the principle:to serve our customers with a high sense of responsibility.Our workers are all high-motivated and our engineers take care of every detail and adopt strict factory quality standard with the philosophy "God is in the details.

When you purchase machines, high-quality products, good service and favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so chose us.



Application:

Roll die cutting machine is widely used in the area of the roll printing,packaging,paper cups and so on.It is suitable for kinds of cigarette boxes, medical boxes, envelope,paper cups ,paper bowels, gift bags and the other paper and plastic products. The main electric part and the opponents of the machine adopts imported ones.It adopts the structure of worm gear, can make the products of high quality,low depletion,high security. The machine controls the feeding automatically,color mark tracking,die cutting accurately,knife plate locking pneumatically, easy operating and changing.



Specification:

Model MQ970
Max speed 200 times/min
Die cutting precision ±0.1mm
Paper thickness 80-2000g
Max. Die cutting pressure 320T
Max. Die cutting size 1120*640mm(W*L)
Min. Die cutting size 400*350mm(W*L)
Max unwind paper roll diameter 1600mm
Power 16kw 380V 3P
Dimensions 2500*1450*3300(mm)
Machine weight 3500kg



Feature:
1. Unwind air shaft controlled by pneuamtic brake, hydraulic loading

2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper core and adjust different paper folding angle

5. Photoelectric eye trace paper to ensure synchronization of paper feeding speed and die cutting speed

6. Pneumatic locking system to make sure cutter not fall down

7. Die cutting cutter plate and cutter frame can be taken out simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop automatically
9. Finished paper will pile up automatically, lower down automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which is convenient, we can set paper tension, paper feeding length, paper counting and automatic stop



About Us

High-Quality
We elaborate every product to provide customers with the best service.
Rich Experience
We have rich experience to provide customers with the best products and services.
Professional Team
We have a professional team which can well feed customers to solver problems and provide better services.



Packaging:

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.



package detail Wooden case/Good price automatic hamburger cake small paper carton lunch box die cutting machine for paper box
Package size 4.8*3*2.6m(L*W*H) (L*W*H)mm
Gross weight 8T



FAQ

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.

Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.

Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.

Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
