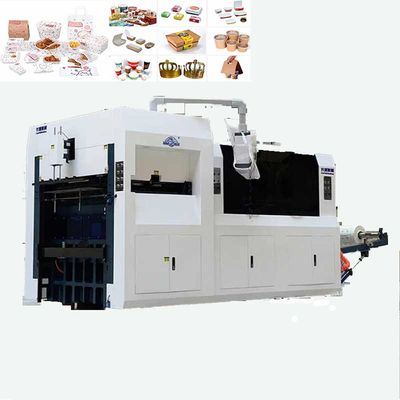

FECT 320T 16kw 380V 3P Paper Cup Die Cutting Machine For Boxes

FECT 320T 16kw 380V 3P Paper Cup Die Cutting Machine For Boxes

  • High Light

    380V 3P Paper Cup Die Cutting Machine


    FECT Paper Cup Die Cutting Machine


    320T die cutting machine for boxes

  • Name
    MQ970 200 Times/min Cake Carton Lunch Box Die Cutting Machine For Paper Box
  • Max Unwind Paper Roll Diameter
  • Power
    16kw 380V 3P
  • Max Speed
    200 Times/min
  • Warranty Time
    One Year
  • Condition
  • Place of Origin
    Ningbo, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    USD$ 46, 619/ set
  • Packaging Details
    Export-standard and sea-worthy wooden case.
  • Delivery Time
    Within 35 days after deposit received
  • Payment Terms
    30% T/T as deposit in advance, the balance by T/T after production
  • Supply Ability
    30 Set/Sets per Month Die Cutting Machine

FECT 320T 16kw 380V 3P Paper Cup Die Cutting Machine For Boxes

MQ970 200 times/min Cake Carton Lunch Box Die Cutting Machine for Paper box



1. Unwind air shaft controlled by pneuamtic brake, hydraulic loading

2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper core and adjust different paper folding angle

5. Photoelectric eye trace paper to ensure synchronization of paper feeding speed and die cutting speed

6. Pneumatic locking system to make sure cutter not fall down

7. Die cutting cutter plate and cutter frame can be taken out simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop automatically
9. Finished paper will pile up automatically, lower down automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which is convenient, we can set paper tension, paper feeding length, paper counting and automatic stop



Model MQ970
Max speed 200 times/min
Die cutting precision ±0.1mm
Paper thickness 80-2000g
Max. Die cutting pressure 320T
Max. Die cutting size 1120*640mm(W*L)
Min. Die cutting size 400*350mm(W*L)
Max unwind paper roll diameter 1600mm
Power 16kw 380V 3P
Dimensions 2500*1450*3300(mm)
Machine weight 3500kg


This die cutting machine used to die cut pe coated paper, normal paper, corrugating paper and plasitc material, it applied to paper cup, paper box, medical package, wine package, food packages etc.


package detail Wooden case/Good price automatic hamburger cake small paper carton lunch box die cutting machine for paper box
Package size 4.8*3*2.6m(L*W*H) (L*W*H)mm
Gross weight 8T


About Us

We elaborate every product to provide customers with the best service.
Rich Experience
We have rich experience to provide customers with the best products and services.
Professional Team
We have a professional team which can well feed customers to solver problems and provide better services.


Quality Guarantee: One year warranty and lifelong technical service, the seller guarantee the

machines are 100% new. The above clause is ONLY effective under the machine is being

properly used, any artificial misuse or destroy purposely is not within the limit of Quality




Q1 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.

Q2: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

Q3 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.

Q4 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q5: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.

Q6 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.


Installation and Debugging: we can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 80 USD /day.
