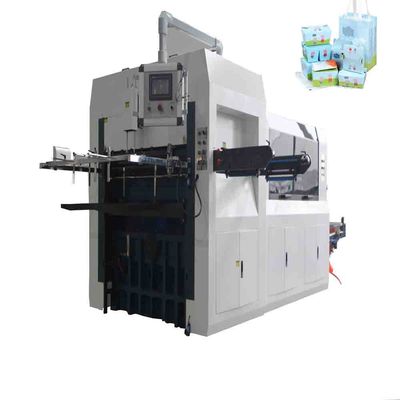

200 times/min MQ970 Cake Small Paper Carton Lunch Box Die Cutting Machine for Paper box
Application:
Good price automatic hamburger cake small paper carton lunch box die cutting machine for paper box is suitable for creasing, die-cutting various cigarette case, medicine case, envelopes, paper cup, food paper box, paper bowl, gift bags and various paper producuts.It can finish paper embossing, creasing, die cutting and automatic collectiion all steps in one time.
| package detail | Wooden case/Good price automatic hamburger cake small paper carton lunch box die cutting machine for paper box |
| Package size | 4.8*3*2.6m(L*W*H) (L*W*H)mm |
| Gross weight | 8T |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Specification:
| Model | MQ970 |
| Max speed | 200 times/min |
| Die cutting precision | ±0.1mm |
| Paper thickness | 80-2000g |
| Max. Die cutting pressure | 320T |
| Max. Die cutting size | 1120*640mm(W*L) |
| Min. Die cutting size | 400*350mm(W*L) |
| Max unwind paper roll diameter | 1600mm |
| Power | 16kw 380V 3P |
| Dimensions | 2500*1450*3300(mm) |
| Machine weight | 3500kg |
Feature:
1. Unwind air shaft controlled by pneuamtic brake, hydraulic loading
2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper core and adjust different paper folding angle
5. Photoelectric eye trace paper to ensure synchronization of paper feeding speed and die cutting speed
6. Pneumatic locking system to make sure cutter not fall down
7. Die cutting cutter plate and cutter frame can be taken out simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop automatically
9. Finished paper will pile up automatically, lower down automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which is convenient, we can set paper tension, paper feeding length, paper counting and automatic stop
