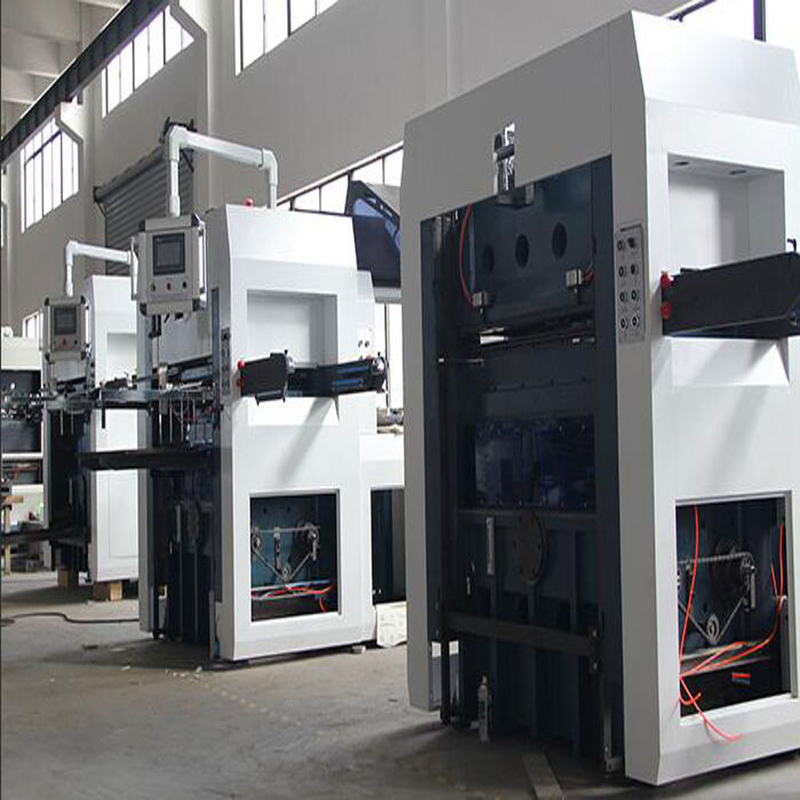

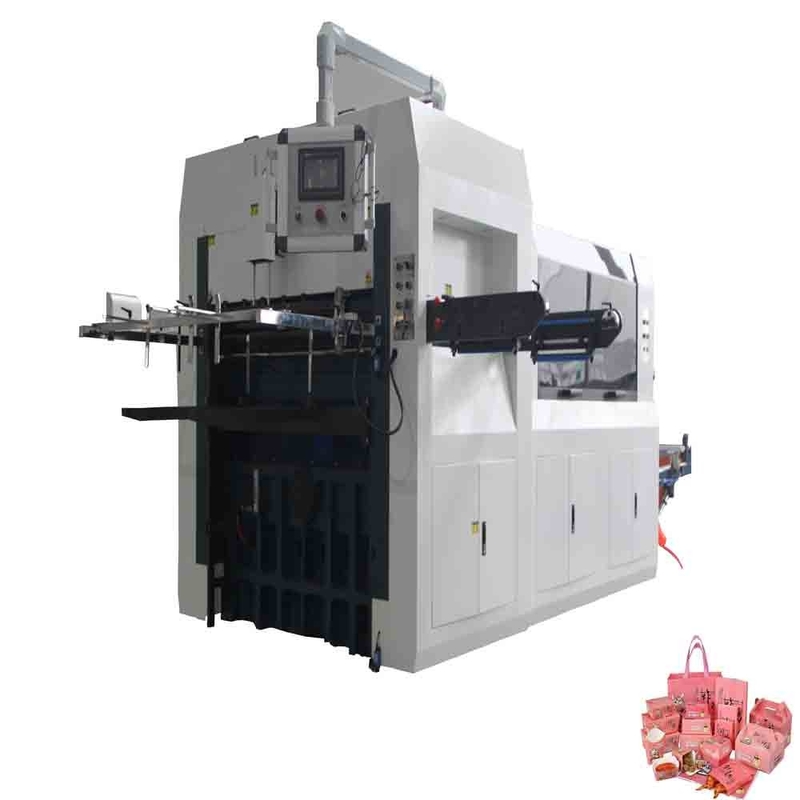

Automatic Hamburger Cake Small Paper Carton Lunch Box Die Cutting Machine for Paper Box
Feature:
1. Unwind air shaft controlled by pneuamtic brake, hydraulic loading
2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper core and adjust different paper folding angle
5. Photoelectric eye trace paper to ensure synchronization of paper feeding speed and die cutting speed
6. Pneumatic locking system to make sure cutter not fall down
7. Die cutting cutter plate and cutter frame can be taken out simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop automatically
9. Finished paper will pile up automatically, lower down automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which is convenient, we can set paper tension, paper feeding length, paper counting and automatic stop
Specification:
Model | MQ970 |
Max speed | 200 times/min |
Die cutting precision | ±0.1mm |
Paper thickness | 80-2000g |
Max. Die cutting pressure | 320T |
Max. Die cutting size | 1120*640mm(W*L) |
Min. Die cutting size | 400*350mm(W*L) |
Max unwind paper roll diameter | 1600mm |
Power | 16kw 380V 3P |
Dimensions | 2500*1450*3300(mm) |
Machine weight | 3500kg |
FAQ
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course.We are the manufacture factory. More important,we put a high value on our
reputation. Best quality is our principle all the time.You can be assured on our production
completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
About Us
High-Quality
We elaborate every product to provide customers with the best service.
Rich Experience
We have rich experience to provide customers with the best products and services.
Professional Team
We have a professional team which can well feed customers to solver problems and provide better services.
Application:
Good price automatic hamburger cake small paper carton lunch box die cutting machine for paper box is suitable for creasing, die-cutting various cigarette case, medicine case, envelopes, paper cup, food paper box, paper bowl, gift bags and various paper producuts.It can finish paper embossing, creasing, die cutting and automatic collectiion all steps in one time.
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
