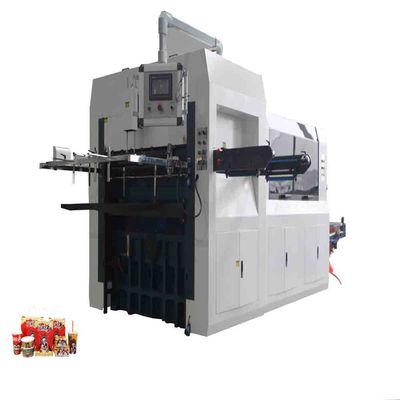

1120*640mm(W*L) Automated Food Box Carton Die Cutting Machine Auto Creasing
This die cutting machine used to die cut pe coated paper, normal paper, corrugating paper and plasitc material, it applied to paper cup, paper box, medical package, wine package, food packages etc.
1. Unwind air shaft controlled by pneuamtic brake, hydraulic loading
2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper core and adjust different paper folding angle
5. Photoelectric eye trace paper to ensure synchronization of paper feeding speed and die cutting speed
6. Pneumatic locking system to make sure cutter not fall down
7. Die cutting cutter plate and cutter frame can be taken out simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop automatically
9. Finished paper will pile up automatically, lower down automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which is convenient, we can set paper tension, paper feeding length, paper counting and automatic stop
|Max speed||200 times/min|
|Die cutting precision||±0.1mm|
|Max. Die cutting pressure||320T|
|Max. Die cutting size||1120*640mm(W*L)|
|Min. Die cutting size||400*350mm(W*L)|
|Max unwind paper roll diameter||1600mm|
|Power||16kw 380V 3P|
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
If you have any question, you can consult us. We will help you solve it.
If you prepare to place a big order, We will give you a favorite price.
