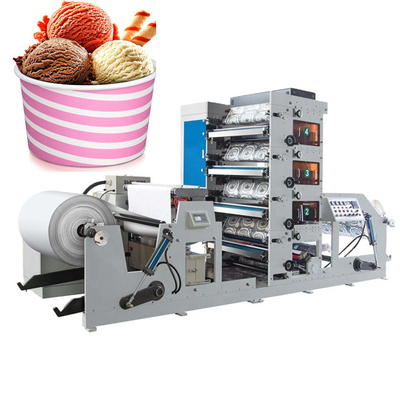

360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer

360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer

  • High Light

    850mm paper cup printing and cutting machine

    ,

    ODM paper cup printing and cutting machine

    ,

    360 Plate Adjustment Paper Cup Printer

  • Name
    360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines
  • Max. Printing Width
    850mm
  • Max Rewinder Diameter
    1400mm
  • Printing Length
    175-380mm
  • Dryer
    IR Dryer
  • Application
    Paper Cup, Paper Bowl, Paper Straw And Etc
  • Warranty
    One Year Warranty
  • Delivery Time
    Within 35 Days After Payment Confirmed
  • Place of Origin
    Henan, China
  • Brand Name
    Fect
  • Certification
    CE
  • Model Number
    850 360 plate adjustment paper cup printing machine
  • Minimum Order Quantity
    1 set
  • Price
    USD 22000- USD28000 / set
  • Packaging Details
    wooden case/ 360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines
  • Delivery Time
    35 days after receiving payment
  • Payment Terms
    T/T, Western Union, L/C, , MoneyGram
  • Supply Ability
    300Sets per Month 360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines

360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer

360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines ​



360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material, unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type. This 360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines is an ideal device for factory printing many kinds of paper cup, paper box, paper straw, or other disposable cone type food paper containers.



♦Technical Parameters♦



Type

RY850 360 Plate-Adjustment Die Cutting Stabletion Paper Cup Prinitng Machines

Printing colors

2 colors or optional

Printing speed

50-60m/ min pcs/minutes

Printing material

paper or pe coated paper

Feeding width

860mm

Feeding diameter

1400mm

Printing length

175-180mm

Precision of chromatography

±0.15mm

Power

3p 380V 15kw

Air pressure 0.5MP
Dimensions 2.25 X1.1m X2.4m
Machine weight About 2200kg

360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer 0

360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer 1360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer 2360 Plate Adjustment Paper Cup Printing And Cutting Machine With IR Dryer 3



♦Feature♦



1)Unwinding tension is controlled by automatic tension controller from Japan Mitsubishi.
2) Each printing unit have one IR dryer
3) The rubber roller can break away automatically while parking, and run at a low speed in order to avoid ink being dry.
4) The main motor is adopted the import stepless regulation of frequency conversion.



Company Information



Zhengzhou Perfect Co., Ltd. is a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials’ printing, coating, die cutting, slitting, paper product making and others on the products.



With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.



We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!





FAQ



Q1: Delivery of  Paper Cup Printing Machine?



A: Within 35 days after payment confirmed.



Q2 : What payment terms are accepted?



A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.



Q3: Do you have relevant certificate?



A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q4: Can we send our technician to your factory for training?



A: of course, you are warmly welcome to visit us for free training
